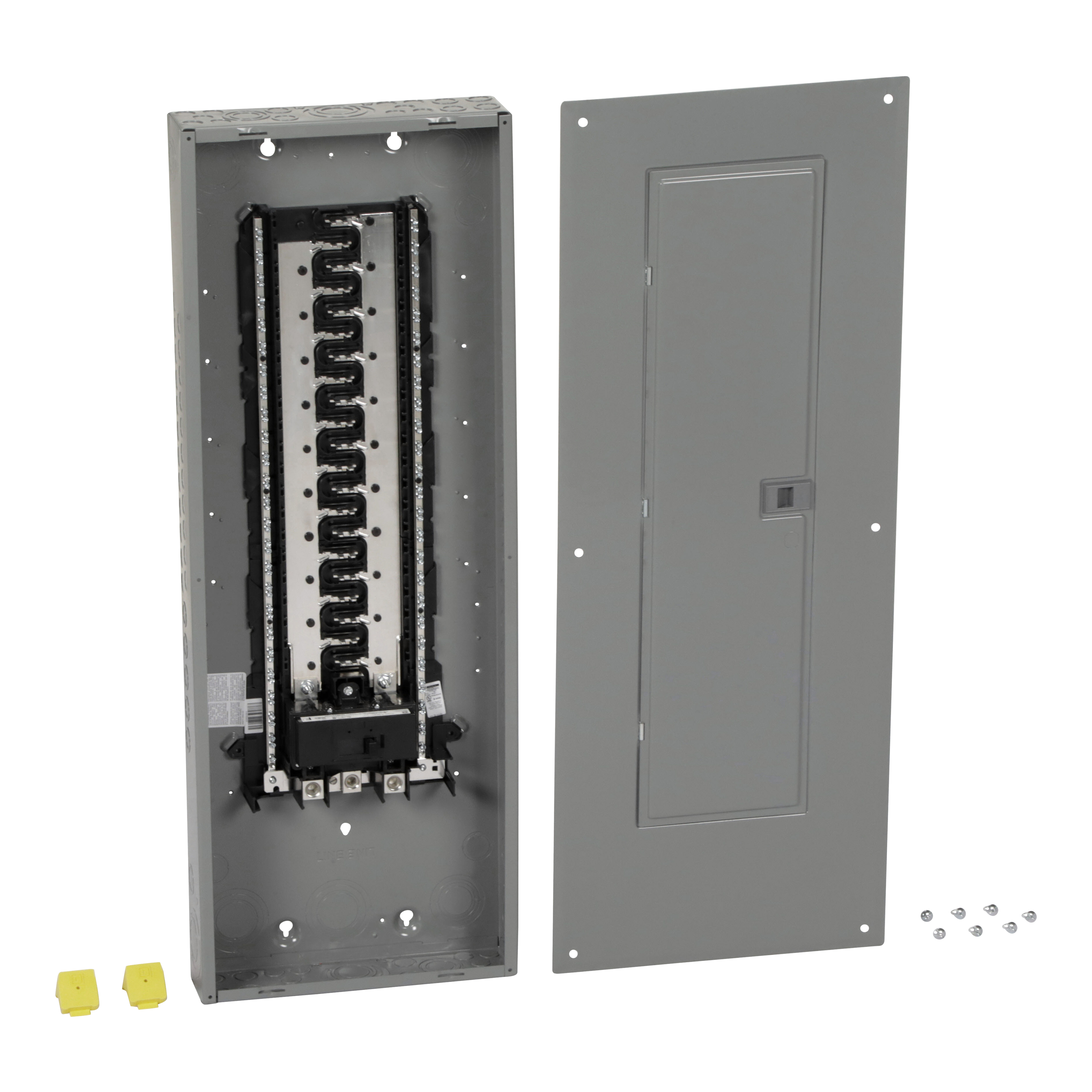

Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Name: Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Brand: United Electric
SKU: HOM4080M200PC
Price: 1008.81 USD
Availability: InStock

MFR #: HOM4080M200PC

UPC: 785901977575

Product #: 572004

Part Number:

HOM4080M200PC HOM INDR 200A MB 40/80CIR SQUARE D

$1,008.81 / ea $1,019.00 / ea

Enter Quantity

Features

SQD SCHNEIDER-ELECTRIC HOM4080M200PC

Specifications

Brand Square D
Bus Rated Current - Metric 225
Cable Size AWG 4...250 kcmil aluminium/copper
Cover Type Combination flush/surface cover
Depth - Metric 95
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 12;Baked enamel Gray;Welded sheet steel
Height - Metric 1000
Line Rated Current - Metric 200
Load Center Type PoN Convertible Mains (breaker)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 1 indoor enclosure
Number Of Circuits 80
Number of Spaces 40
Number Of Tandem Circuit Breakers 40
Phase 1
Provided Equipment Circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
Rated Operational Voltage 120/240 V AC
Short Description HOM4080M200PC HOM INDR 200A MB 40/80CIR SQUARE D
Short-circuit Current - Metric 22
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 362
Wiring Configuration 3-Wire
