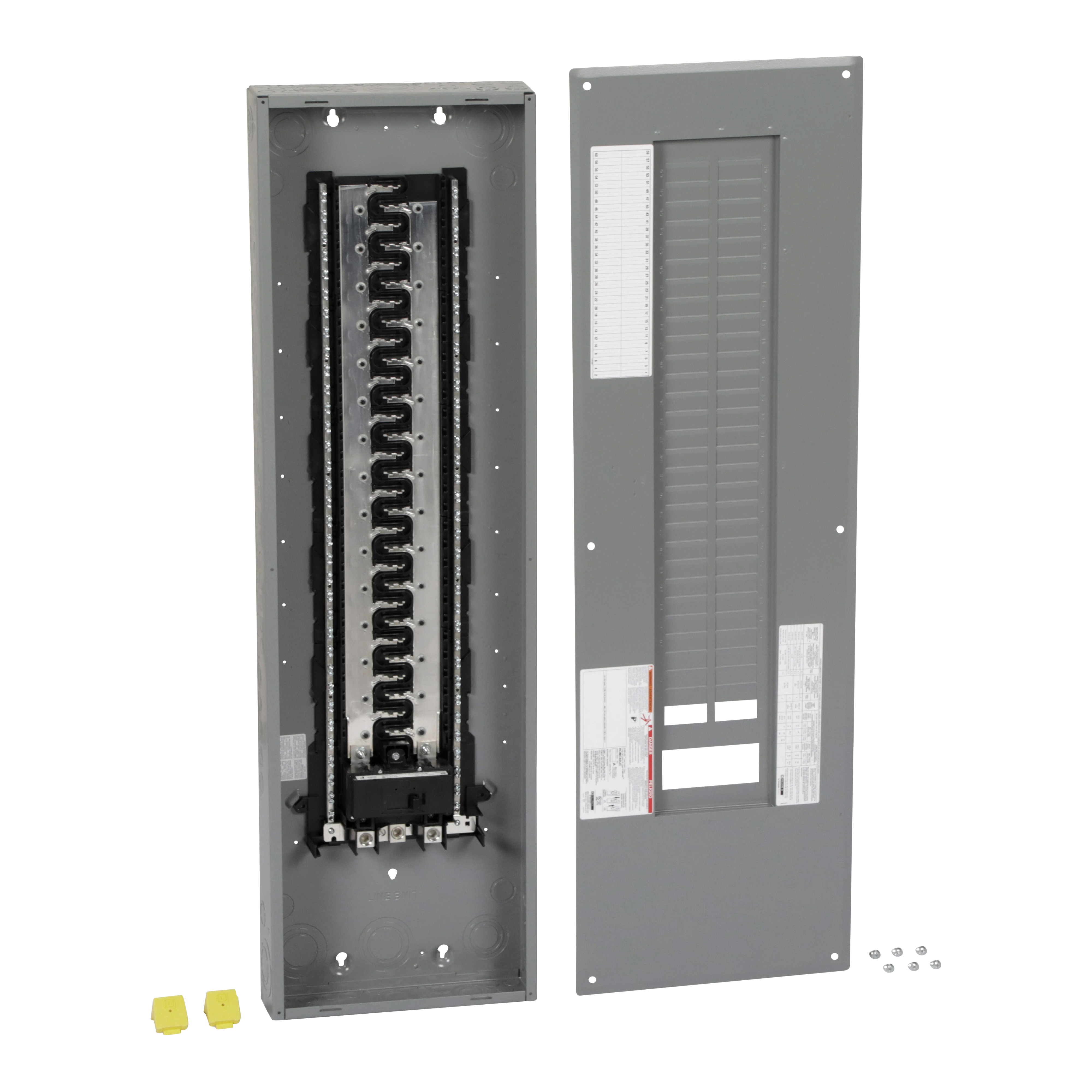

Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Name: Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Brand: United Electric
SKU: HOM60120M200PC
Price: 1857.24 USD
Availability: InStock

MFR #: HOM60120M200PC

UPC: 785901974055

Product #: 567685

Part Number:

HOM60120M200PC HOM INDR 200A MB 60/120CIR SQUARE D COVER DO NOT INCLUDE DOOR ORDER PART QOCDK60

$1,857.24 / ea $1,876.00 / ea

Enter Quantity

Features

SQD SCHNEIDER-ELECTRIC HOM60120M200PC

Specifications

Brand Square D
Bus Rated Current - Metric 225
Cable Size AWG 4...250 kcmil copper or aluminium
Cover Type Combination flush/surface cover
Depth - Metric 95
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 25;Baked enamel Gray;Welded sheet steel
Height - Metric 1235
Line Rated Current - Metric 200
Load Center Type PoN Convertible Mains (breaker)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 1 indoor enclosure
Number Of Circuits 120
Number of Spaces 60
Number Of Tandem Circuit Breakers 60
Phase 1
Provided Equipment Circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
Rated Operational Voltage 120/240 V AC
Short Description HOM60120M200PC HOM INDR 200A MB 60/120CIR SQUARE D COVER DO NOT INCLUDE DOOR ORDER PART QOCDK60
Short-circuit Current - Metric 22
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 362
Wiring Configuration 3-Wire

Resources

Product Brochure

Spec Sheet

Technical Drawing
