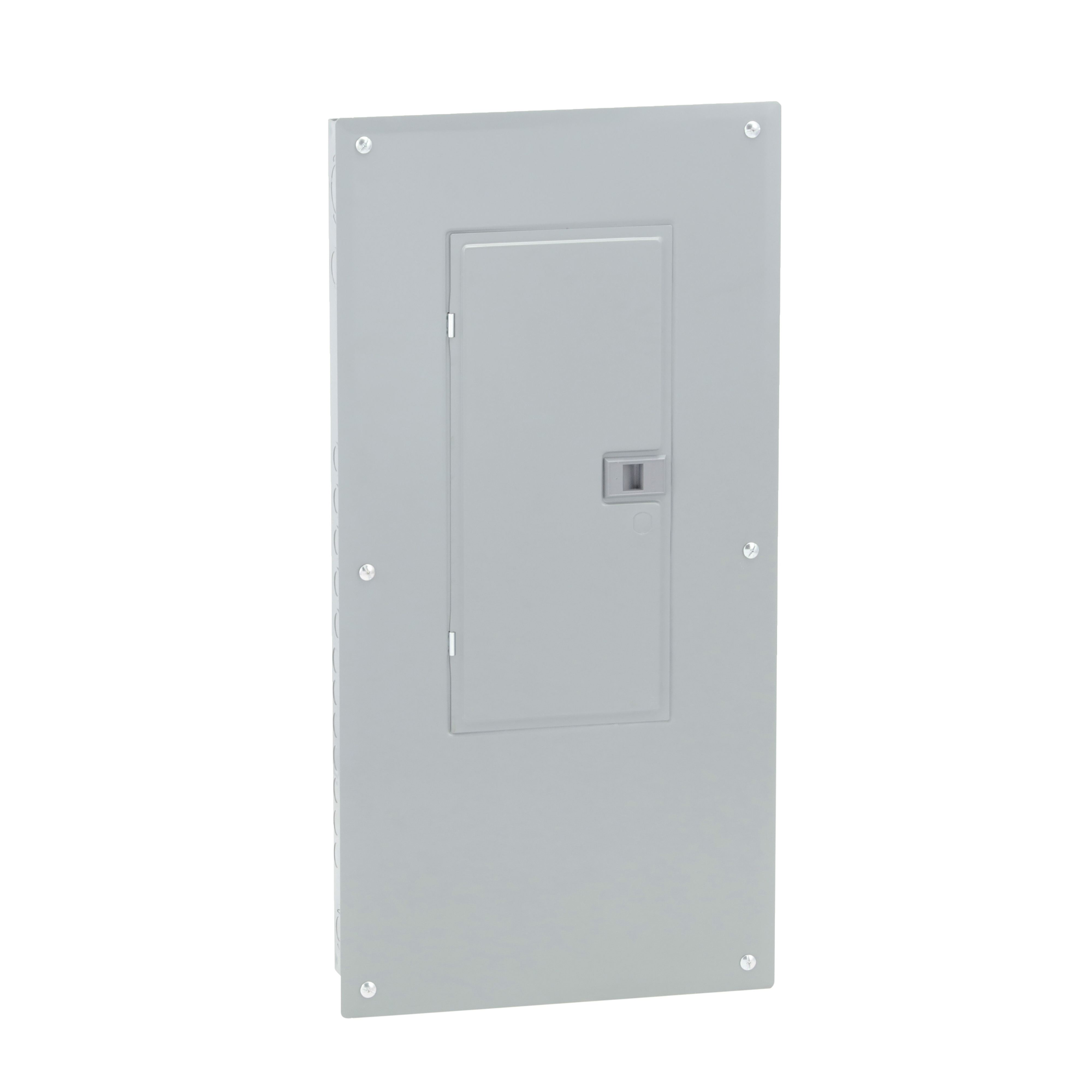

Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Name: Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Brand: United Electric
SKU: HOM2040M200PC
Price: 703.89 USD
Availability: InStock

MFR #: HOM2040M200PC

UPC: 785901977285

Product #: 567613

Part Number:

HOM2040M200PC HOM INDR 200A MB 20/40CIR SQUARE D

$703.89 / ea $711.00 / ea

Enter Quantity

Features

SQD SCHNEIDER-ELECTRIC HOM2040M200PC

Specifications

Brand Square D
Bus Rated Current - Metric 225
Cable Size AWG 4...250 kcmil aluminium/copper
Cover Type Combination flush/surface cover
Depth - Metric 95
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 9;Baked enamel Gray;Welded sheet steel
Height - Metric 758
Line Rated Current - Metric 200
Load Center Type PoN Convertible Mains (breaker)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 1 indoor enclosure
Number Of Circuits 40
Number of Spaces 20
Number Of Tandem Circuit Breakers 20
Phase 1
Provided Equipment Circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
Rated Operational Voltage 120/240 V AC
Short Description HOM2040M200PC HOM INDR 200A MB 20/40CIR SQUARE D
Short-circuit Current - Metric 22
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 362
Wiring Configuration 3-Wire

Resources

Product Brochure

Spec Sheet

Technical Drawing
