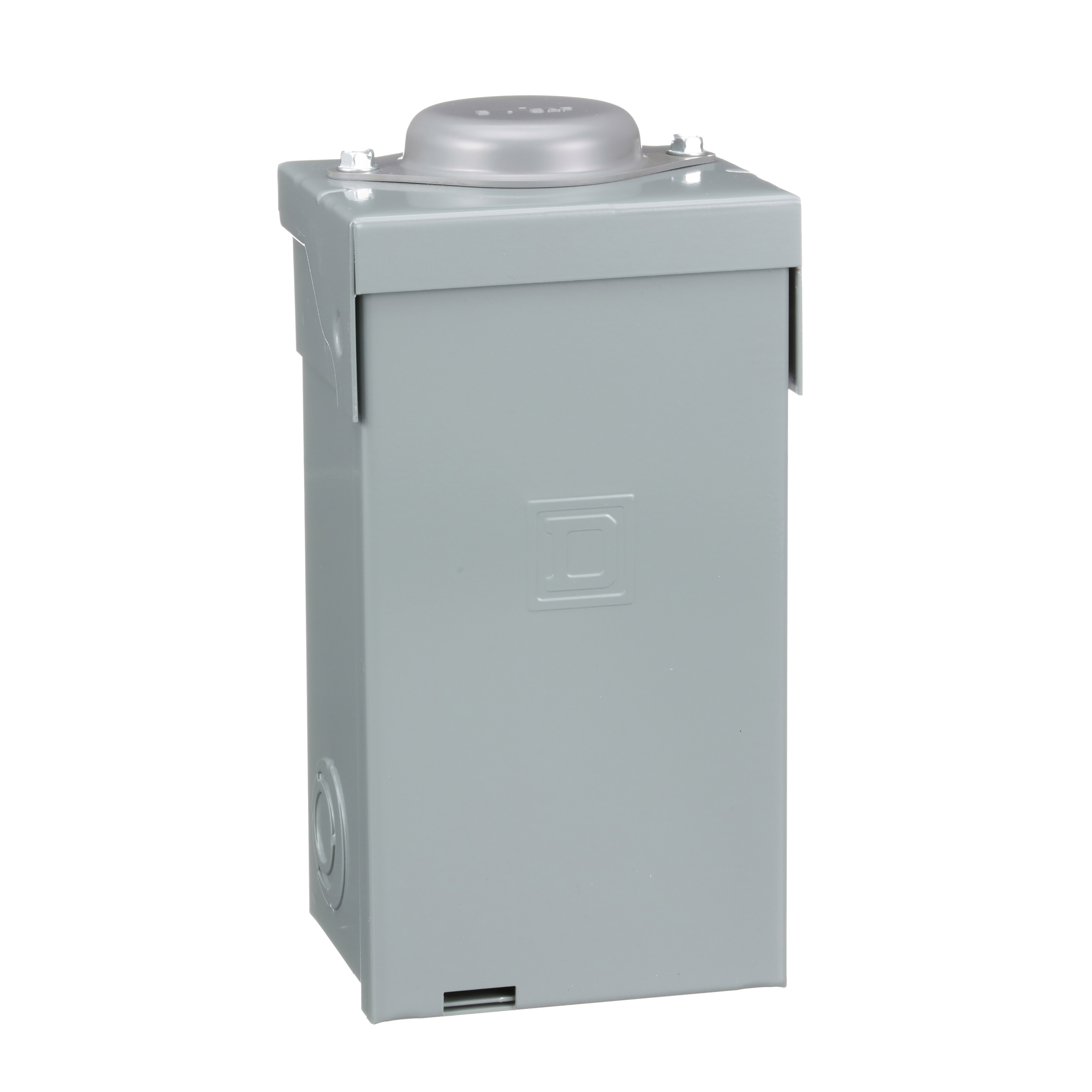

Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R, UL

Name: Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R, UL
Brand: United Electric
SKU: QO24L70RB
Price: 140.07 USD
Availability: InStock

MFR #: QO24L70RB

UPC: 785901785132

Product #: 100059

Part Number:

QO24L70RB LOAD CENTER QO MLO 240V 70A 1PH 2SP SQUARE D

$140.07 / ea

Enter Quantity

Features

SQUARE D QO24L70RB LOAD CENTER FIXED MAINS - LUGS 70A 1-PHASE NEMA 3R 2 SPACE(S) 10KA 2 OUTDOOR/RAINPROOF SURFACE ORDER SEPARATELY 120/240 VAC

Specifications

Brand Square D
Cable Size AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper
Cover Type Surface cover
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 1R;Baked enamel Gray;Welded galvannealed steel
Enclosure Type Weatherproof enclosure
Height - Metric 238
Line Rated Current - Metric 70
Load Center Type Fixed Mains (lugs)
Manufacturer Schneider Electric
Number Of Circuits 4
Number of Spaces 2
Number Of Tandem Circuit Breakers 2
Phase 1
Rated Operational Voltage 120/240 V AC
Short Description QO24L70RB LOAD CENTER QO MLO 240V 70A 1PH 2SP SQUARE D
Short-circuit Current - Metric 65
Special Features Tin plated aluminium: busbar
Tightening Torque main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper;Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper;main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper;main lugs 45 lb.in, AWG 3, aluminium/copper
Type Load Center
Width - Metric 124
Wiring Configuration 3-Wire
