Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R

Name: Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R
Brand: United Electric
SKU: HOM24L70RB
Price: 118.68 USD
Availability: InStock

MFR #: HOM24L70RB

UPC: 785901061175

Product #: 69691

Part Number:

HOM24L70RB 06117 LOAD CENTER HOM MLO 240V 70A 1PH 2SP SQUARE D

$118.68 / ea

Enter Quantity

Features

SQUARE D HOM24L70RB LOAD CENTER FIXED MAINS - LUGS 70A NEMA 3R 2 SPACE(S) 10KA 1-PHASE 3-WIRE 2 OUTDOOR/RAINPROOF COMBINATION FLUSH/SURFACE ORDER SEPARATELY

Specifications

Brand Square D
Cable Size AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper
Cover Type Surface cover
Depth - Metric 102
Device Composition Grounding bar (ordered separately)

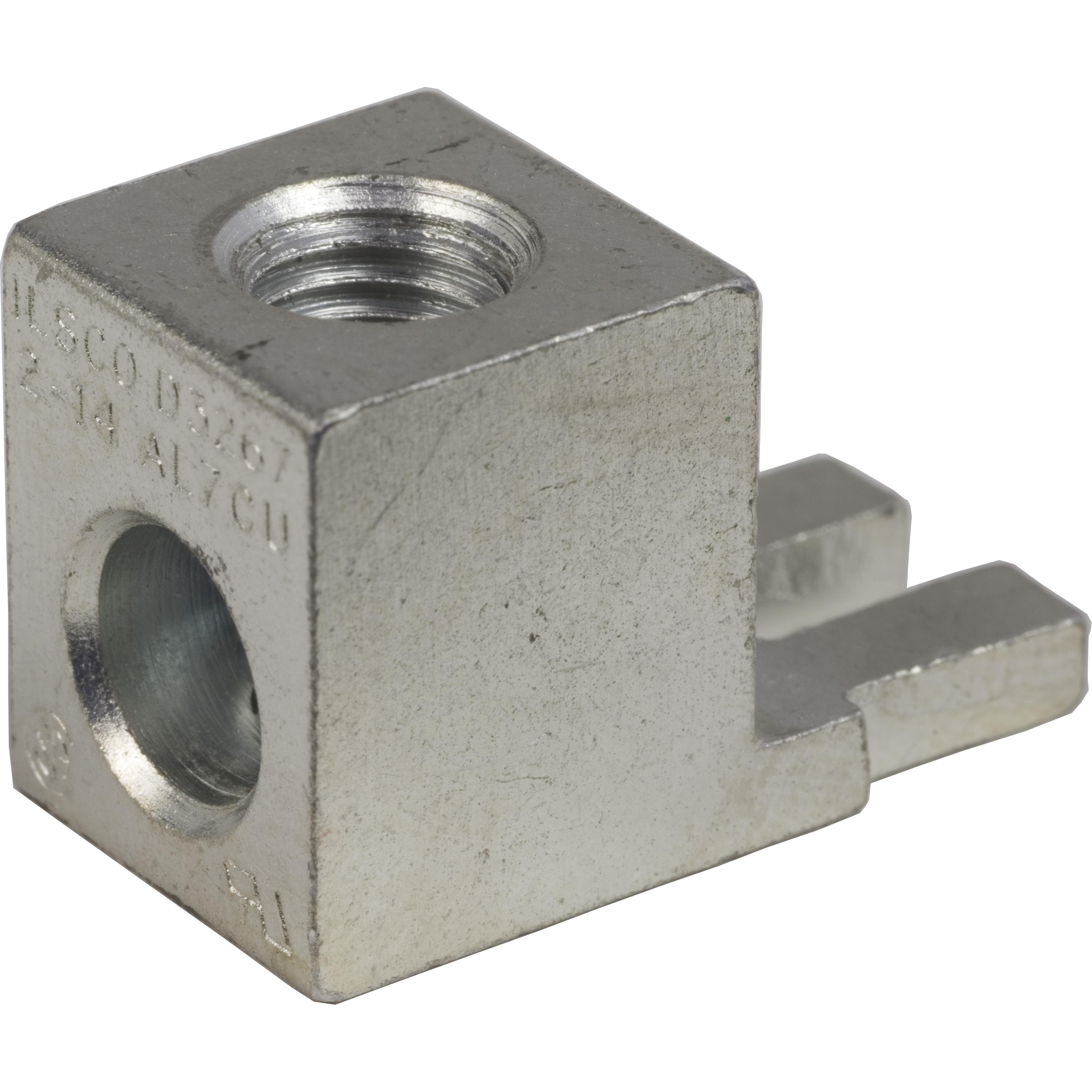

Electrical Connection Lugs
Enclosure 1R;Baked enamel Gray;Welded galvannealed steel
Height - Metric 238
Line Rated Current - Metric 70
Load Center Type Fixed Mains (lugs)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 3R weatherproof enclosure
Number Of Circuits 4
Number of Spaces 2
Number Of Tandem Circuit Breakers 2
Phase 1
Rated Operational Voltage 120/240 V AC
Short Description HOM24L70RB 06117 LOAD CENTER HOM MLO 240V 70A 1PH 2SP SQUARE D
Short-circuit Current - Metric 10
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 124
Wiring Configuration 3-Wire
