Mini branch circuit breaker, Homeline, 150A, 4 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Mini branch circuit breaker, Homeline, 150A, 4 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

MFR #: HOM2150BB

UPC: 785901296201

Product #: 737650

Part Number:

HOM2150BB MINIATURE CIRCUIT BREAKER 120/240V 150A SQUARE D

$423.72 / ea $428.00 / ea

Enter Quantity

Features

SQUARE D HOM2150BB SQUARE D MINIATURE CIRCUIT BREAKER 120/240V 150A 10KA 120/240VAC 150A HOMELINE MINIATURE CIRCUIT BREAKER PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION SCREW #4-300 AWG/KCMIL(AL/CU) UL LISTED - CSA CERTIFIED

Specifications

Awg Gauge 1 x AWG 4...300 kcmil ( aluminium/copper )
Brand Square D
Circuit Breaker Application HACR rated
Circuit Breaker Type Standard
Electrical Connection Box lugs
Line Rated Current - Metric 150
Manufacturer Schneider Electric
Mounting Mode Plug-in
Number Of Spaces Required 4
Poles Description 4
Product Certifications UL Listed
Product Or Component Type Miniature circuit-breaker
Range Of Product Homeline
Rated Operational Voltage 120/240 V AC
Short Description HOM2150BB MINIATURE CIRCUIT BREAKER 120/240V 150A SQUARE D
Short-circuit Current - Metric 10
Tightening Torque 28.3-28.3 N.m 95-150 mm² (AWG 4/0...250 kcmil)

Resources

Product Brochure

Spec Sheet

Technical Drawing

Alternative Products

Product

Mini circuit breaker, QO, 150A, 2 pole, 120/240VAC, ...

MFR #: QO2150

$486.09 / ea $491.00 / ea

You May Also Need

Product

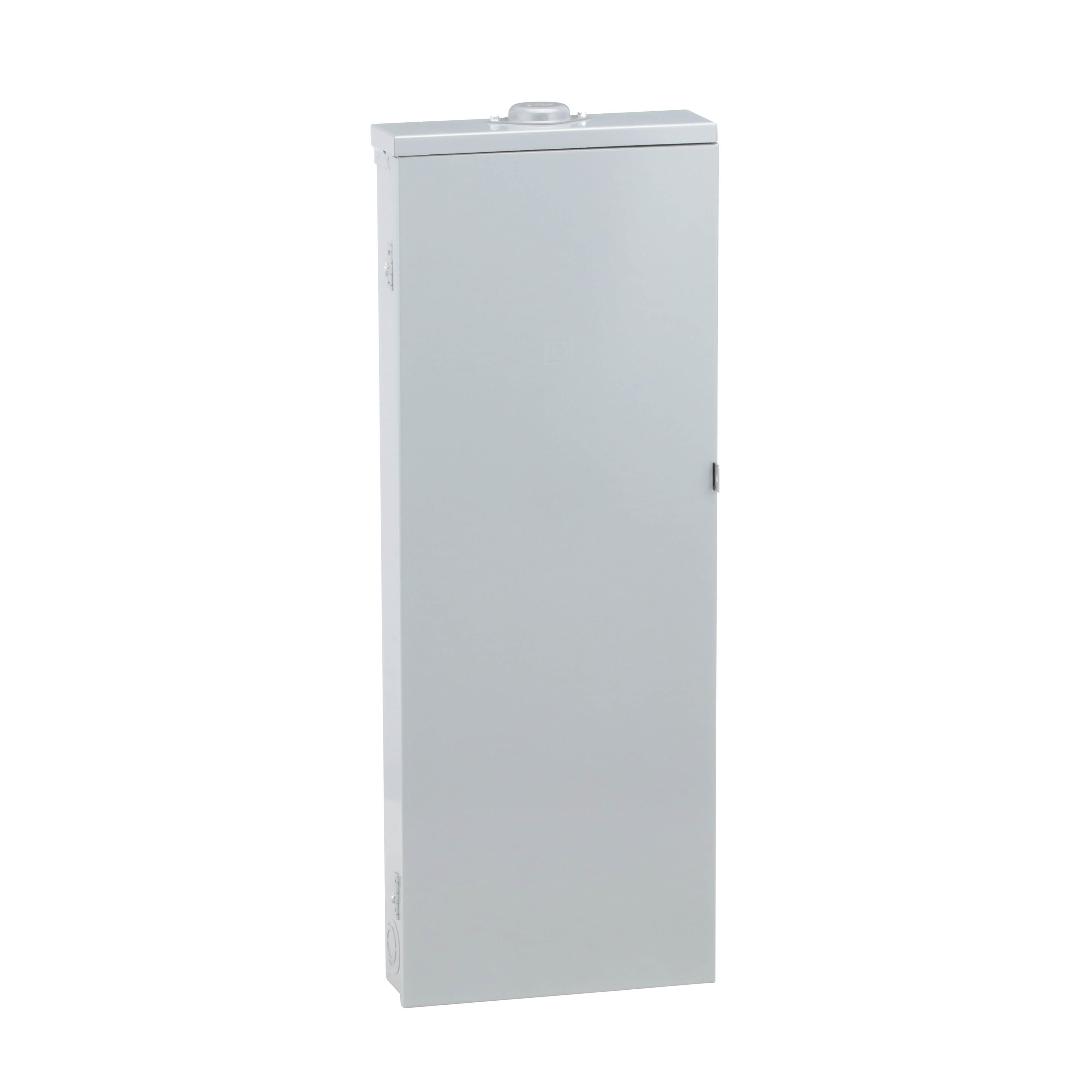

Load center, Homeline, 1 phase, 30 spaces, 60 circui...

MFR #: HOM3060M150PC

$814.61 / ea $822.84 / ea

Product

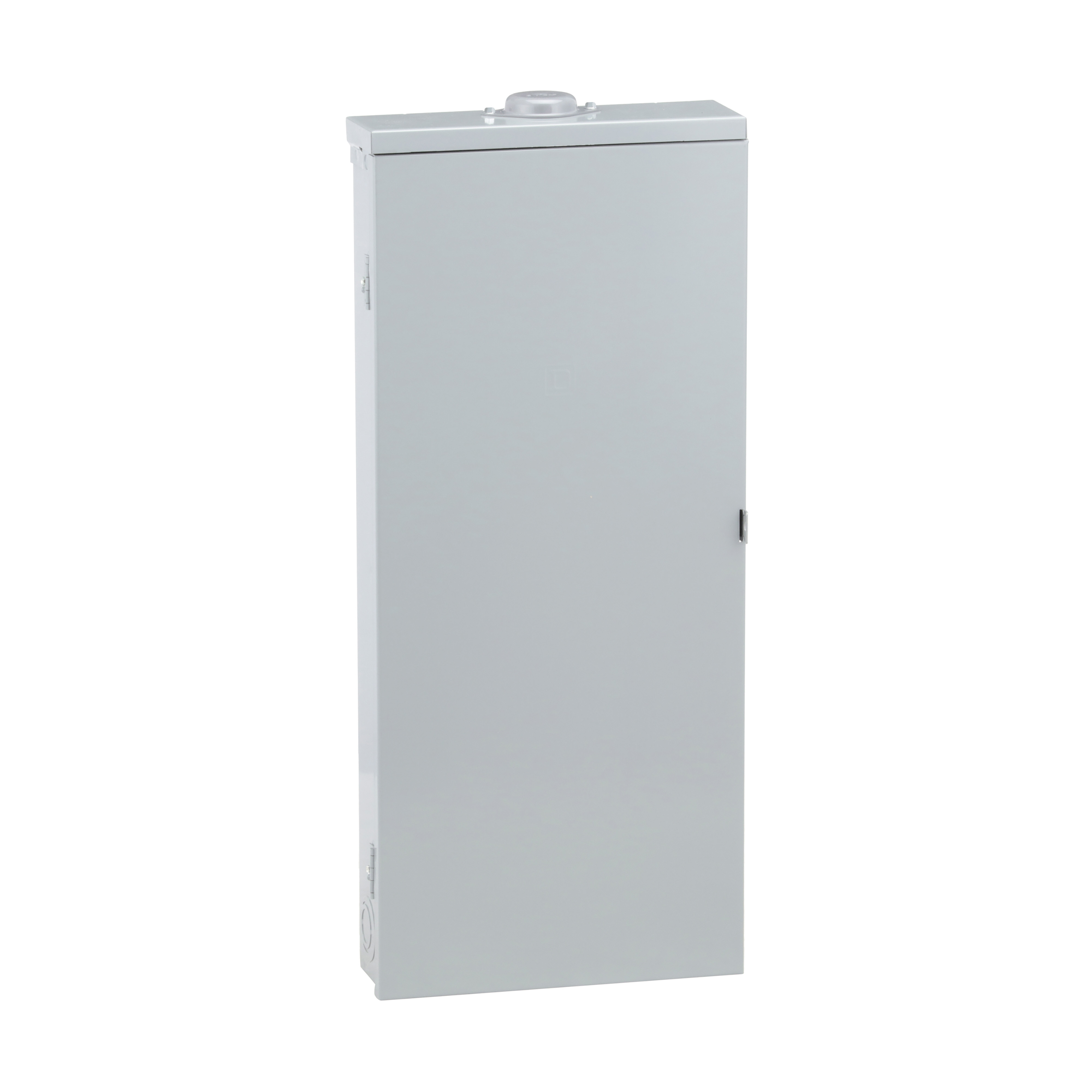

Load center, Homeline, 1 phase, 30 spaces, 60 circui...

MFR #: HOM3060M200PC

$853.22 / ea $861.84 / ea

Product

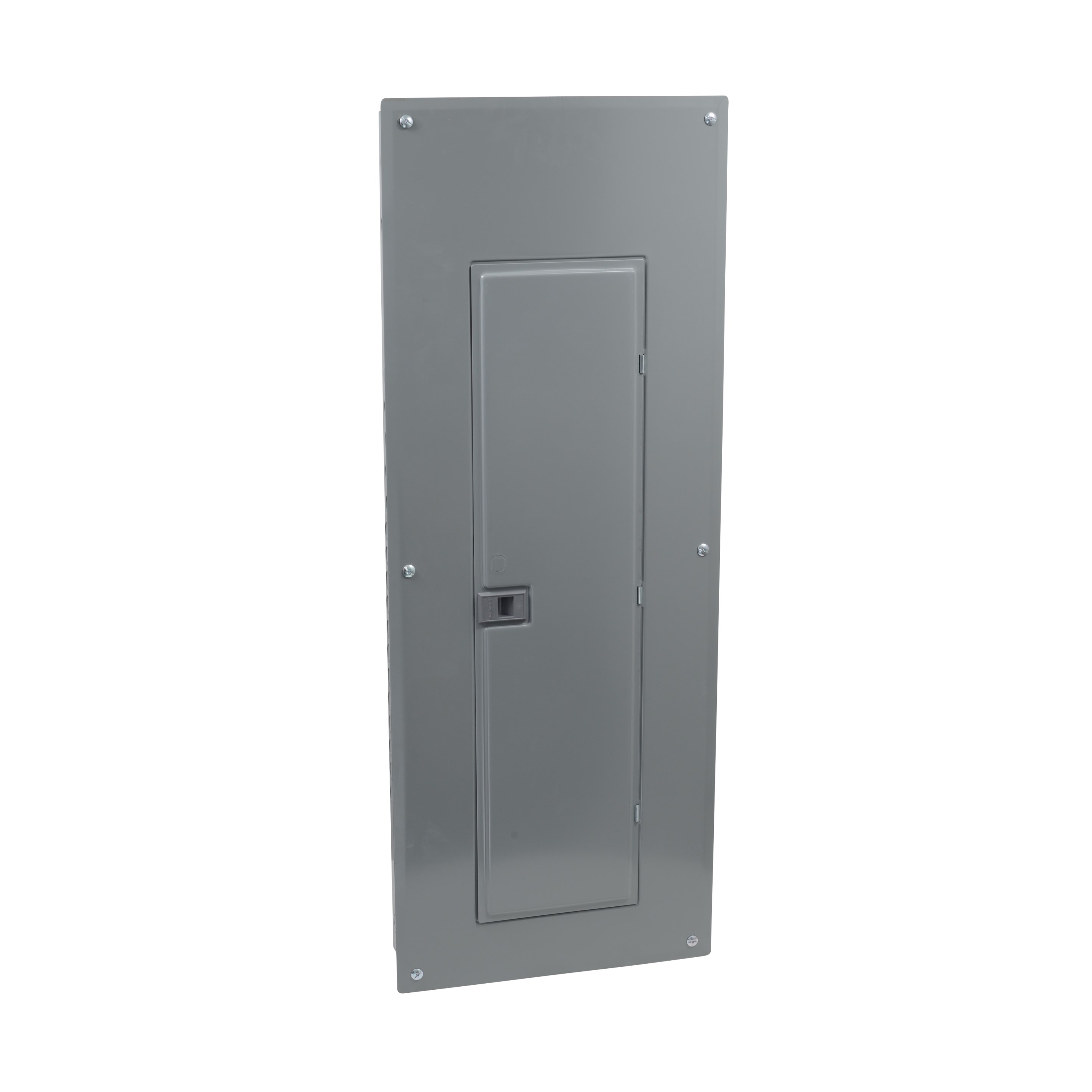

Load center, Homeline, 1 phase, 30 spaces, 60 circui...

MFR #: HOM3060M200PCVP

$1,079.74 / ea $1,090.65 / ea

Product

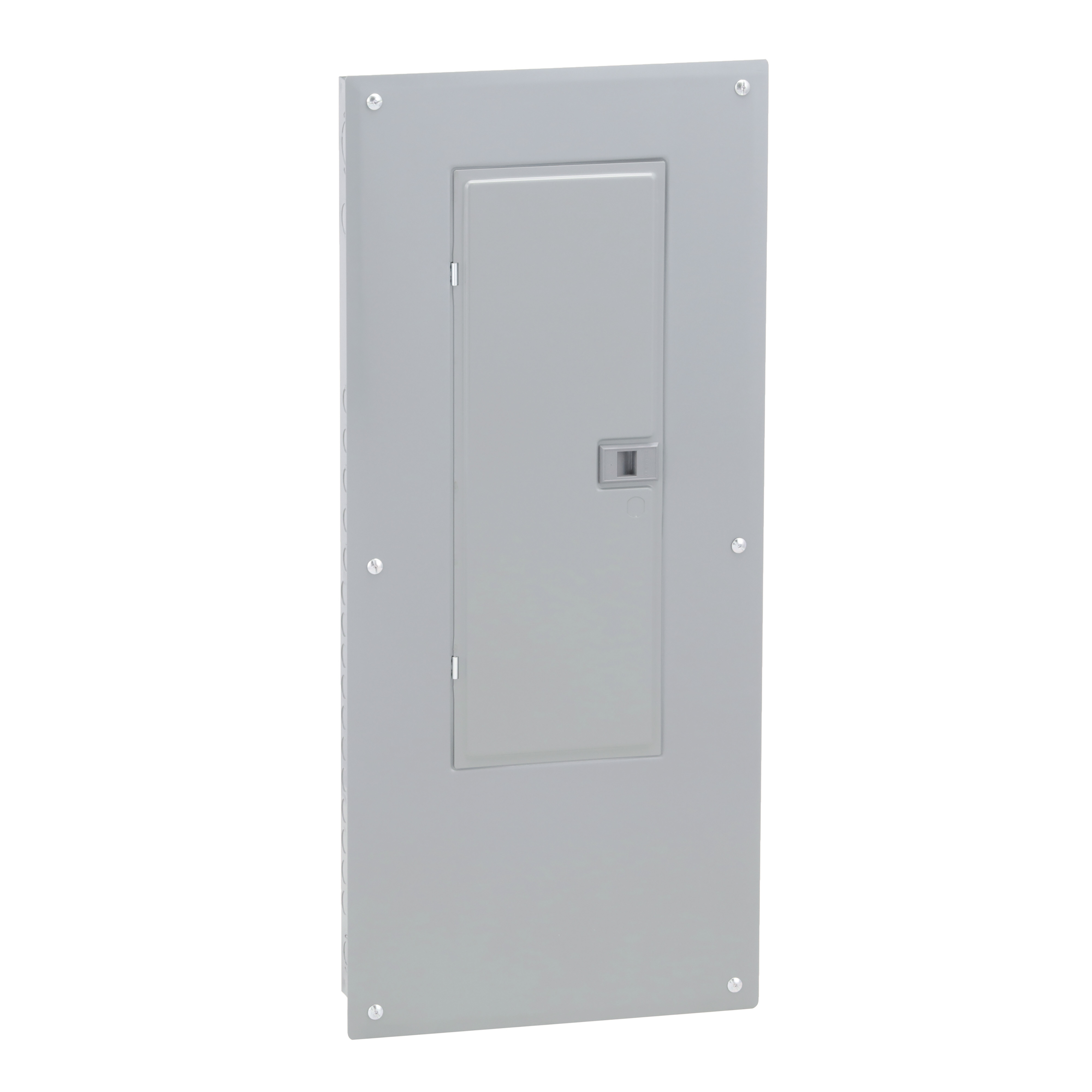

Load center, Homeline, 1 phase, 30 spaces, 60 circui...

MFR #: HOM3060M200PRB

$1,073.48 / ea $1,084.32 / ea

Product

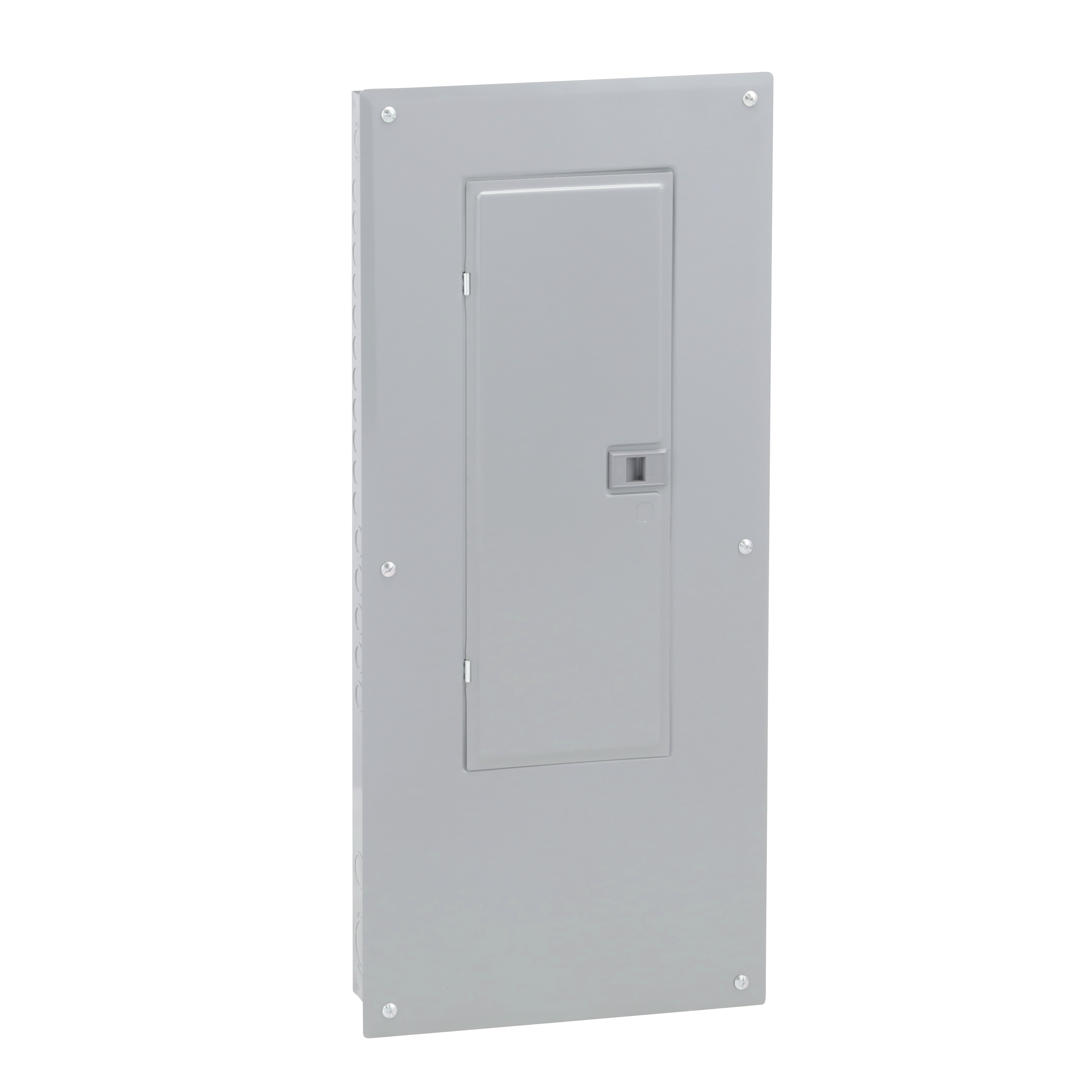

Load center, Homeline, 1 phase, 40 spaces, 80 circui...
