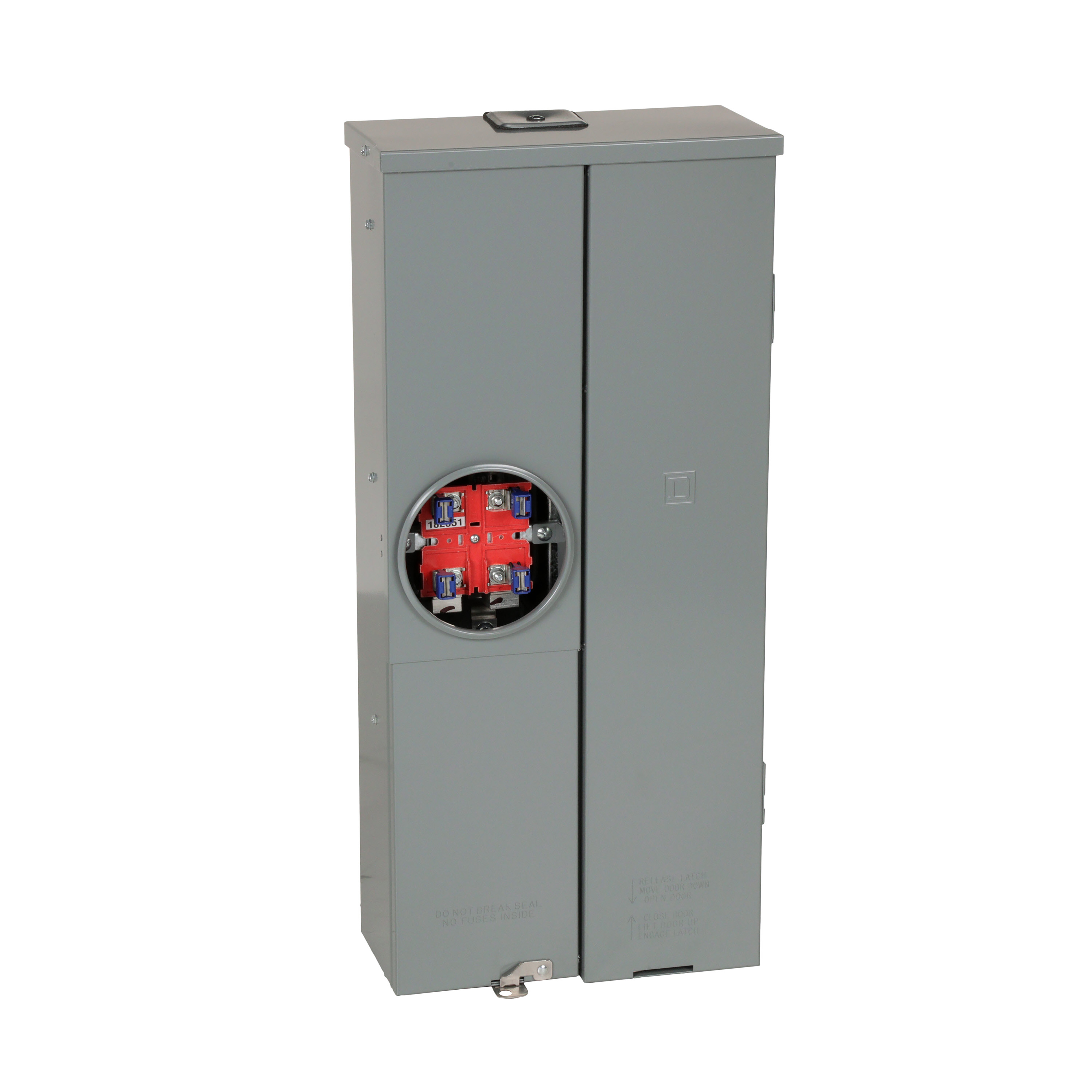

Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass

Name: Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
Brand: United Electric
SKU: SC816D200C
Price: 1237.5 USD
Availability: InStock

MFR #: SC816D200C

UPC: 785901859161

Product #: 898436

Part Number:

SC816D200C METER MAINS HOMELINE CSED RINGED SOCKET 200A SURFACE MOUNT MAXIMUM 8 SPACES 16 CIRCUITS NO BYPASS SQUARE D

$1,237.50 / ea $1,250.00 / ea

Enter Quantity

Features

Square D SC816D200C METER MAINS HOMELINE CSED RINGED SOCKET 200A SURFACE MOUNT MAXIMUM 8 SPACES 16 CIRCUITS NO BYPASS

Specifications

Awg Gauge AWG 6...300 kcmil aluminium/copper)line side;AWG 12...AWG 1/0 aluminium/copper)service ground;AWG 6...250 kcmil aluminium/copper)load side
Brand Square D
Bus Rated Current - Metric 200
Bypass Type No bypass
Device Composition Service disconnect (factory installed)
Device Mounting Surface
Electrical Connection Lugs, line side;feed-thru lugs, service ground;feed-thru lugs, load side
Line Rated Current - Metric 200
Manufacturer Schneider Electric
Number Of Circuits 16
Number of Spaces 8
Number Of Tandem Circuit Breakers 8
Product Or Component Type Meter Mains
Range Of Product Homeline
Service Feed Location OH;UG
Short Description SC816D200C METER MAINS HOMELINE CSED RINGED SOCKET 200A SURFACE MOUNT MAXIMUM 8 SPACES 16 CIRCUITS NO BYPASS SQUARE D
Short-circuit Current - Metric 10
Tightening Torque Main lugs 250 lb.in, AWG 6...300 kcmil, aluminium/copper;service ground 50 lb.in, AWG 14...AWG 1/0, copper;service ground 50 lb.in, AWG 12...AWG 1/0, aluminium;lugs 250 lb.in, AWG 6...250 kcmil, aluminium/copper;branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper;branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper;branch lugs 40 lb.in, AWG 8, aluminium/copper;branch lugs 35 lb.in, AWG 14...AWG 10, copper;branch lugs 35 lb.in, AWG 12...AWG 10, aluminium;Cover 10 lb.in
