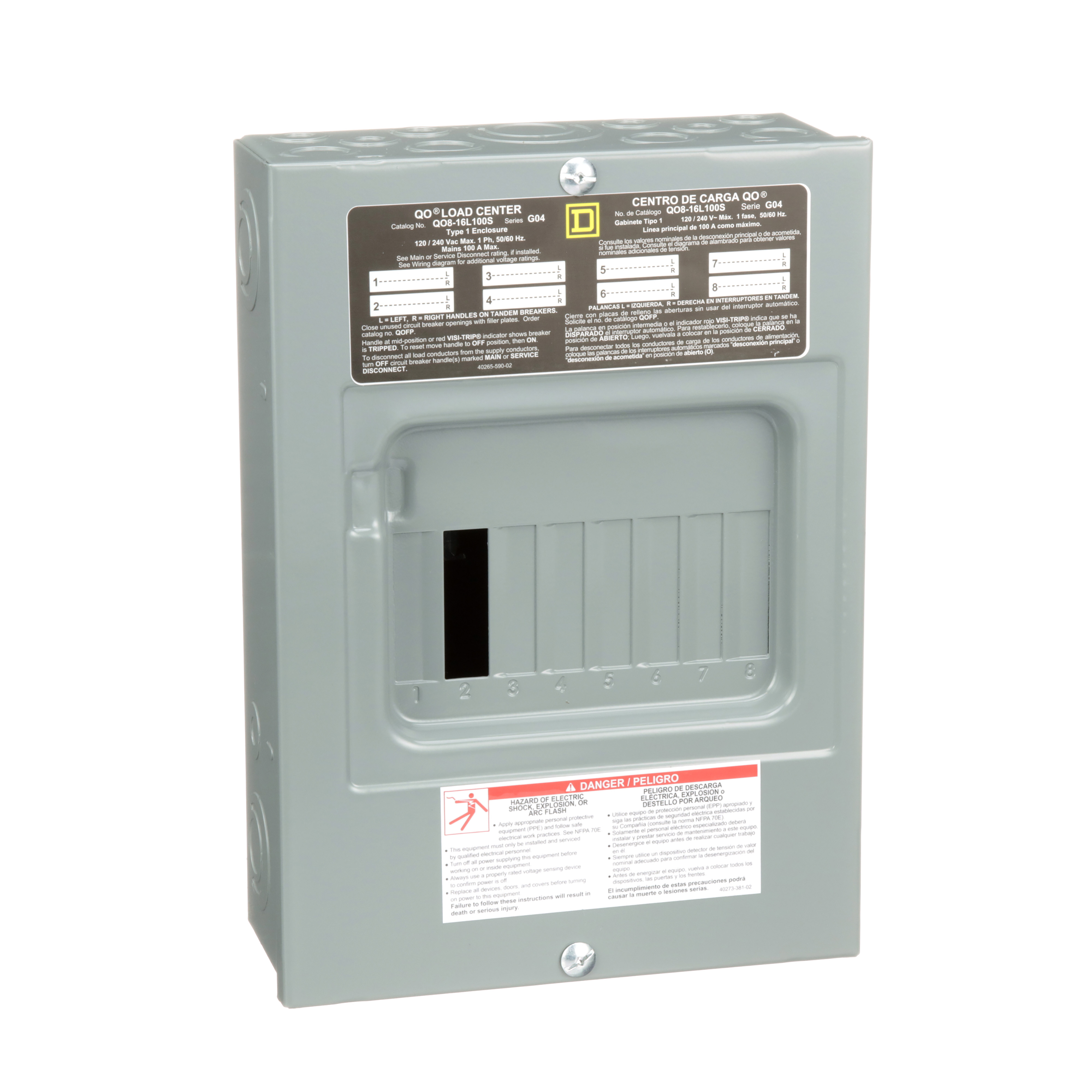

Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, surface cover, UL

Name: Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, surface cover, UL
Brand: United Electric
SKU: QO816L100S
Price: 140.07 USD
Availability: InStock

MFR #: QO816L100S

UPC: 785901785682

Product #: 57150

Part Number:

QO816L100S 78568 LOAD CENTER QO MLO 240V 100A 1PH 8SP N1 SQUARE D

$140.07 / ea

Enter Quantity

Features

SQUARE D QO816L100S LOAD CENTER FIXED MAINS - LUGS 100A 1-PHASE NEMA 1 8 SPACE(S) 10KA 8 INDOOR SURFACE (WITHOUT DOOR) ORDER SEPARATELY 120/240 VAC

Specifications

Brand Square D
Cable Size AWG 8...AWG 1 aluminium/copper
Cover Type Surface cover
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 4;Baked enamel Gray;Welded sheet steel
Height - Metric 319
Line Rated Current - Metric 100
Load Center Type Fixed Mains (lugs)
Manufacturer Schneider Electric
Number Of Circuits 16
Number of Spaces 8
Number Of Tandem Circuit Breakers 8
Phase 1
Rated Operational Voltage 120/240 V AC
Short Description QO816L100S 78568 LOAD CENTER QO MLO 240V 100A 1PH 8SP N1 SQUARE D
Short-circuit Current - Metric 10
Special Features Tin plated aluminium: busbar
Tightening Torque main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper;Main lugs 50 lb.in, AWG 8, aluminium/copper
Type Load Center
Width - Metric 226
Wiring Configuration 3-Wire
