Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%

Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%

MFR #: QBL32100

UPC: 785901702870

Product #: 3336

Part Number:

QBL32100 70287 MOLDED CASE CIRCUIT BREAKER 240V 100A SQUARE D

$1,235.52 / ea $1,248.00 / ea

Enter Quantity

Features

SQUARE D QBL32100 MOLDED CASE CIRCUIT BREAKER (Q-FRAME) 100A 3-POLE UNIT MOUNT HACR RATED 240 VAC HOLD: 1200A - TRIP: 2400A 10KA@240VAC #4 TO 300 AWG/KCMIL(AL/CU) (POWERPACT) 4 POUNDS

Specifications

Application Distribution
Brand Square D
Breaking Capacity 10 kA 120/208 V AC 50/60 Hz UL; 10 kA 240 V AC 50/60 Hz UL
Breaking Capacity Code B
Circuit Breaker Application HACR rated
Connection Lugs, load;lugs, line
Continuous Current Rating 80
Control Operating handle
Line Rated Current - Metric 100.0;100.0
Local Signalling 1 trip indicator green)
Magnetic Hold Current - Metric 1200
Magnetic Tripping Current - Metric 2400
Manufacturer Schneider Electric
Mechanical Durability 1000 cycles loaded;5000 cycles no load
Mounting Mode Unit mount lug)
Mounting Support Lug
Network Frequency 50/60 Hz
Number of Poles 3
Range PowerPact
Rated Impulse Withstand Voltage 8 kV UL
Short Description QBL32100 70287 MOLDED CASE CIRCUIT BREAKER 240V 100A SQUARE D
Trip Type Thermal-magnetic
Type Circuit breaker

Resources

Product Brochure

Spec Sheet

Technical Drawing

You May Also Need

Product

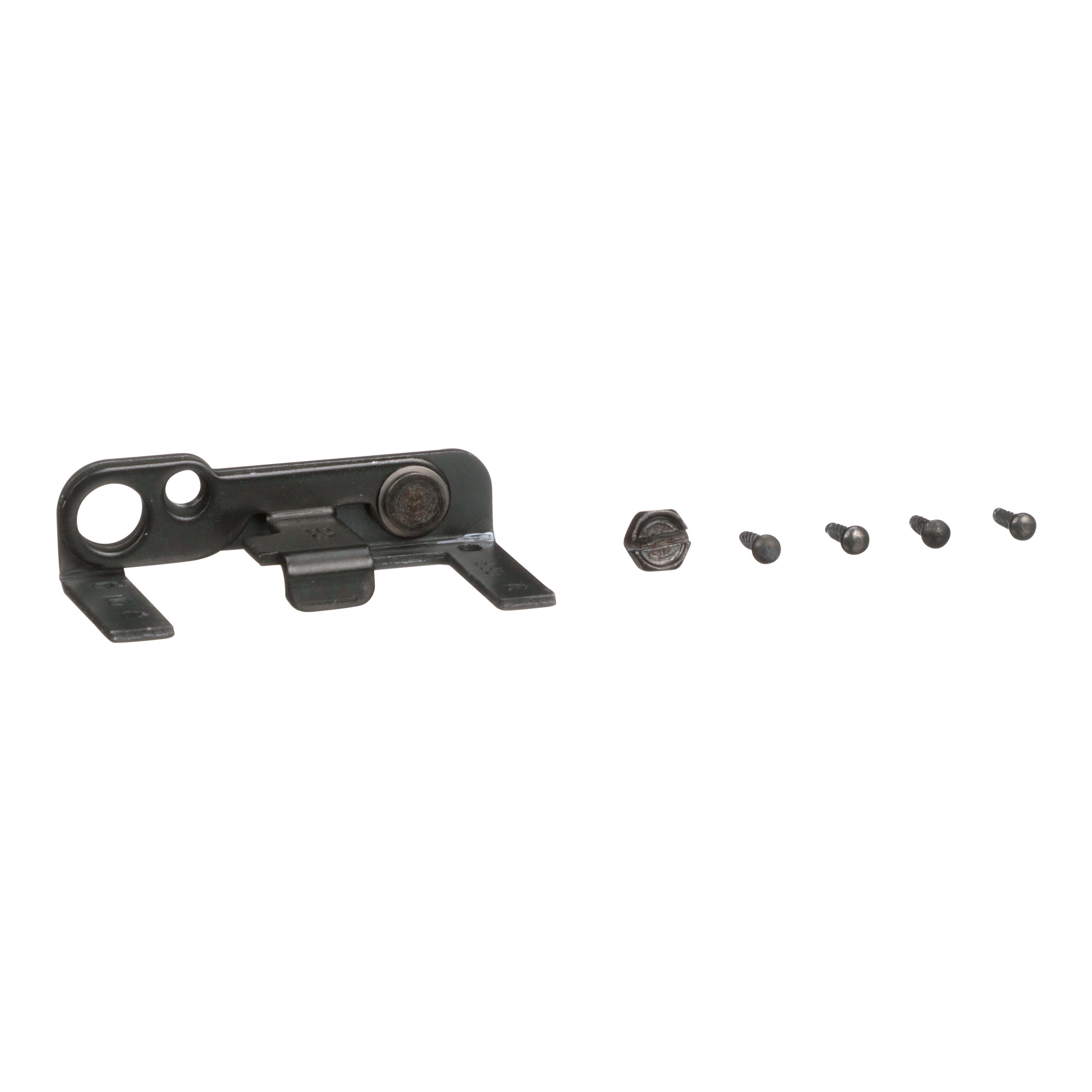

Circuit breaker accessory, PowerPacT Q, padlocking d...
