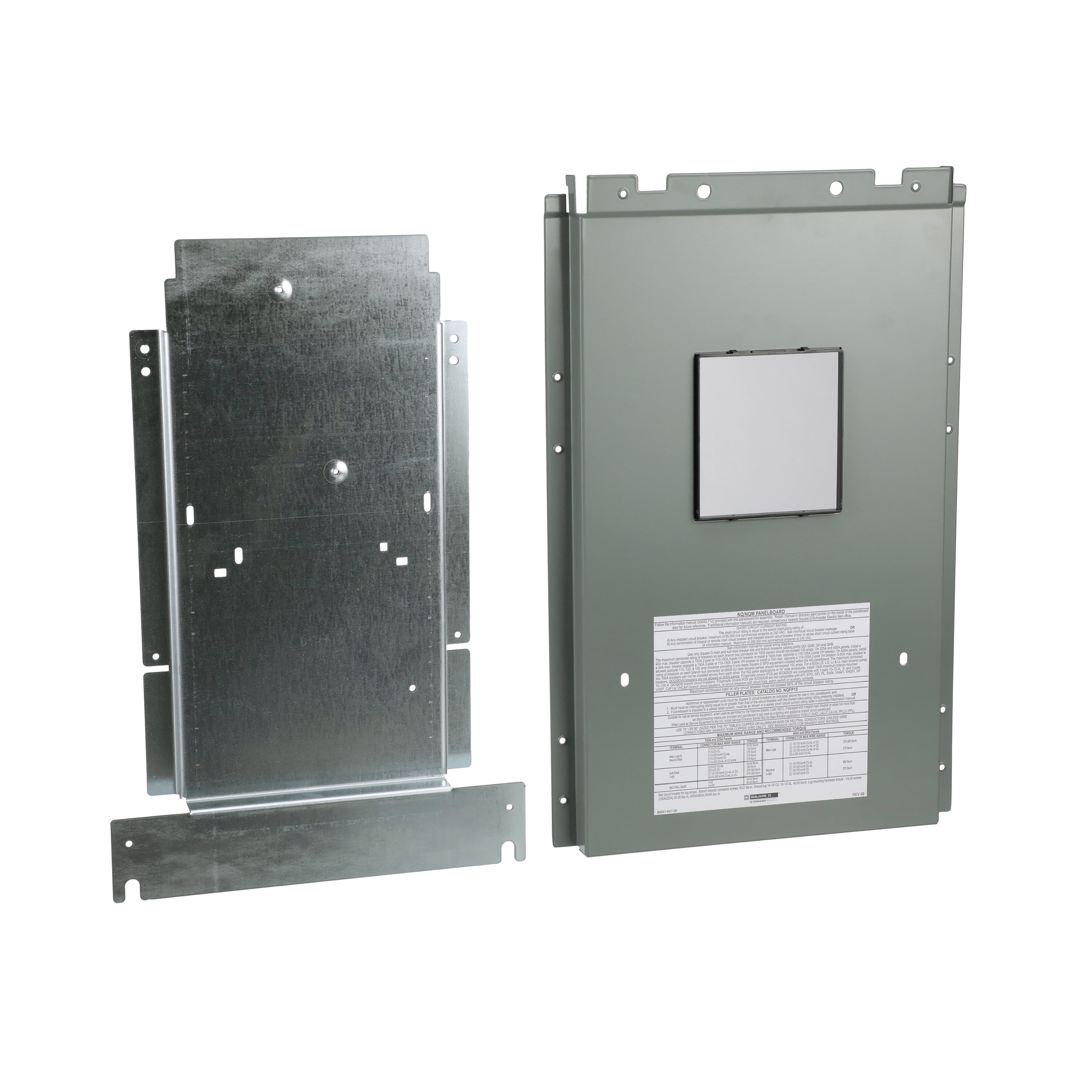

Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Name: Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Brand: United Electric
SKU: NQ430L1C
Price: 1179.09 USD
Availability: InStock

MFR #: NQ430L1C

UPC: 785901507475

Product #: 196861

Part Number:

NQ430L1C 50747 PNLBD INT NQ 100A MLO 30 CKT 3P CU SQUARE D

$1,179.09 / ea $1,191.00 / ea

Enter Quantity

Features

SQD SCHNEIDER-ELECTRIC NQ430L1C PNLBD INT NQ 100A MLO 30 CKT 3P CU

Specifications

Brand Square D
Circuit Breaker Type QOB;QOB-VH;QHB
Connections - Terminals Lug line AWG 6...AWG 2/0 aluminium;lug neutral AWG 6...AWG 2/0 aluminium
Enclosure Nominal Depth 5.75 in NEMA 1;6.5 in NEMA 3R/5/12
Enclosure Nominal Height 32
Enclosure Nominal Width 20
Line Rated Current - Metric 100
Load Center Type Main lugs
Manufacturer Schneider Electric
Material Copper
Number of Spaces 30
Phase Interiors;4-wire
Rated Interrupted Current - Metric 10
Rated Operational Voltage 240 V AC;48 V DC
Short Description NQ430L1C 50747 PNLBD INT NQ 100A MLO 30 CKT 3P CU SQUARE D
Tightening Torque 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0);11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0);31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil);31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil);31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
Type Interiors

Resources

Product Brochure

Spec Sheet

Technical Drawing
