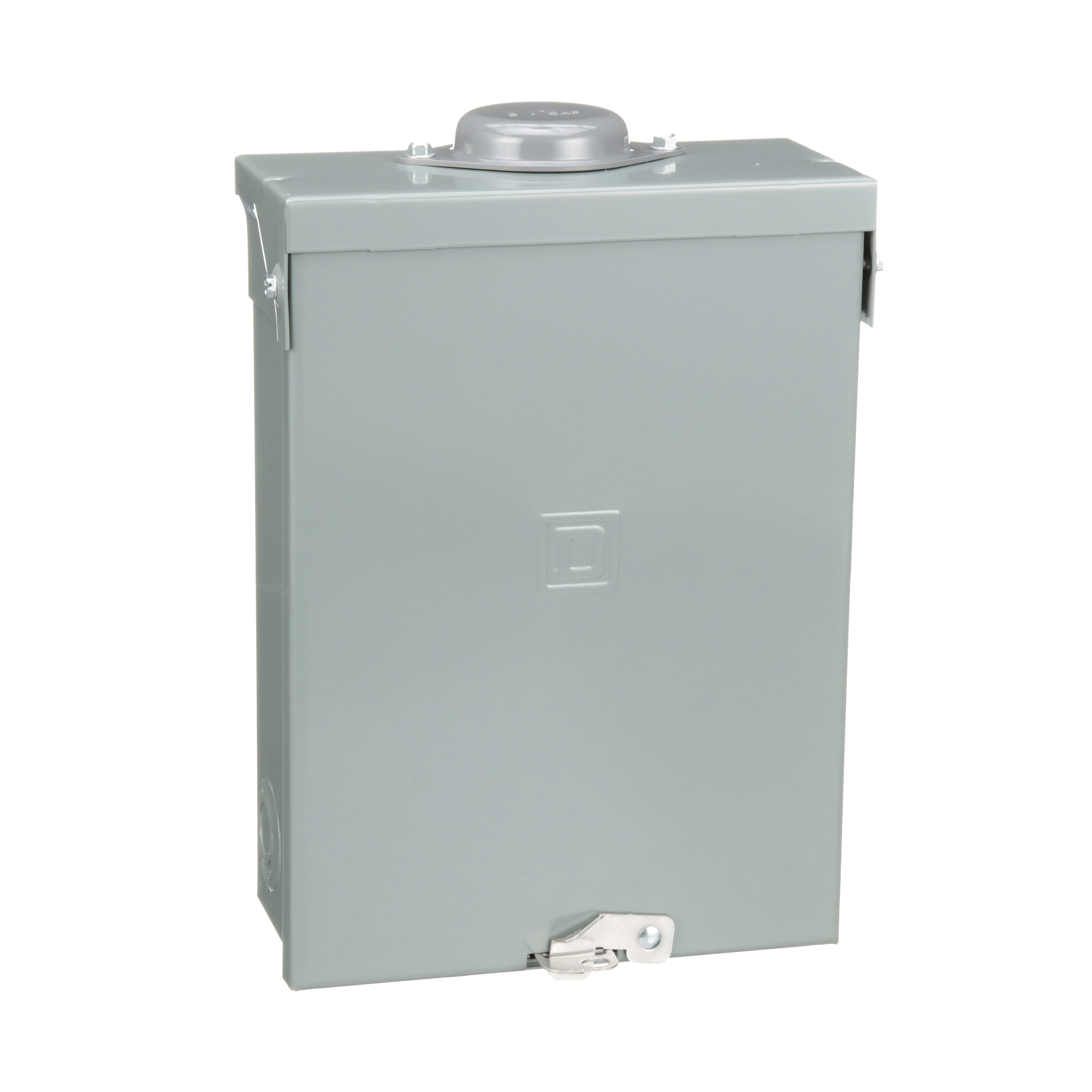

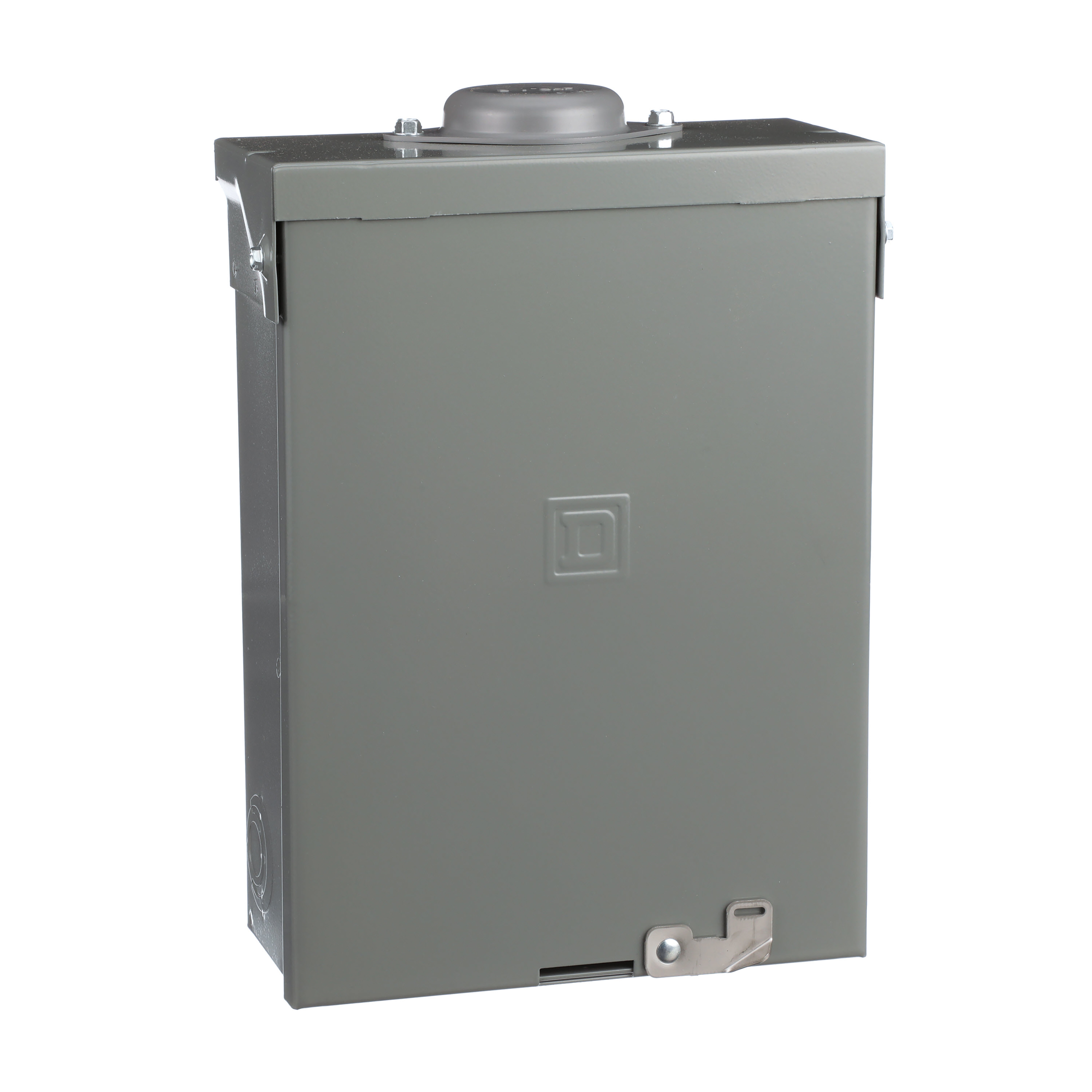

Load center, Homeline, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R

Load center, Homeline, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R

MFR #: HOM612L100RB

UPC: 785901061205

Product #: 8156

Part Number:

HOM612L100RB LOAD CENTER HOM SQUARE D

$136.91 / ea

Enter Quantity

Features

SQUARE D HOM612L100RB LOAD CENTER FIXED MAINS - LUGS 100A NEMA 3R 6 SPACE(S) 10KA 1-PHASE 3-WIRE 6 OUTDOOR/RAINPROOF COMBINATION FLUSH/SURFACE ORDER SEPARATELY

Specifications

Brand Square D
Bus Rated Current - Metric 100
Cable Size AWG 8...AWG 1 aluminium/copper
Cover Type Surface cover
Depth - Metric 108
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 2R;Baked enamel Gray;Welded galvannealed steel
Height - Metric 321
Line Rated Current - Metric 100
Load Center Type Fixed Mains (lugs)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 3R weatherproof enclosure
Number Of Circuits 12
Number of Spaces 6
Number Of Tandem Circuit Breakers 6
Phase 1
Rated Operational Voltage 120/240 V AC
Short Description HOM612L100RB LOAD CENTER HOM SQUARE D
Short-circuit Current - Metric 10
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 226
Wiring Configuration 3-Wire
