Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar, combo cover

Name: Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar, combo cover
Brand: United Electric
SKU: HOM4284L225PGC
Price: 849.59 USD
Availability: InStock

MFR #: HOM4284L225PGC

UPC: 785901974369

Product #: 567678

Part Number:

HOM4284L225PGC HOM INDR 225A MLO 42/84CIR WGB SQUARE D

$849.59 / ea $858.17 / ea

Enter Quantity

Features

SQD SCHNEIDER-ELECTRIC HOM4284L225PGC

Specifications

Brand Square D
Bus Rated Current - Metric 225
Cable Size AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
Cover Type Combination flush/surface cover
Depth - Metric 95
Device Composition Grounding bar included (not installed)
Electrical Connection Lugs
Enclosure 13R1;Baked enamel Gray;Welded sheet steel
Height - Metric 1000
Line Rated Current - Metric 225
Load Center Type PoN Convertible Mains (lugs)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 1 indoor enclosure
Number Of Circuits 84
Number of Spaces 42
Number Of Tandem Circuit Breakers 42
Phase 1
Provided Equipment Grounding bar 1 )
Rated Operational Voltage 120/240 V AC
Short Description HOM4284L225PGC HOM INDR 225A MLO 42/84CIR WGB SQUARE D
Short-circuit Current - Metric 10
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 362
Wiring Configuration 3-Wire

Resources

Product Brochure

Spec Sheet

Technical Drawing

Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar, combo cover

Customer Part Number

Product group

Features

Specifications

Resources

You May Also Need

Surge protection device, Surgebreaker, 22.5kA, 120/2...

Load center accessory, QO/Homeline, screws kit, quan...

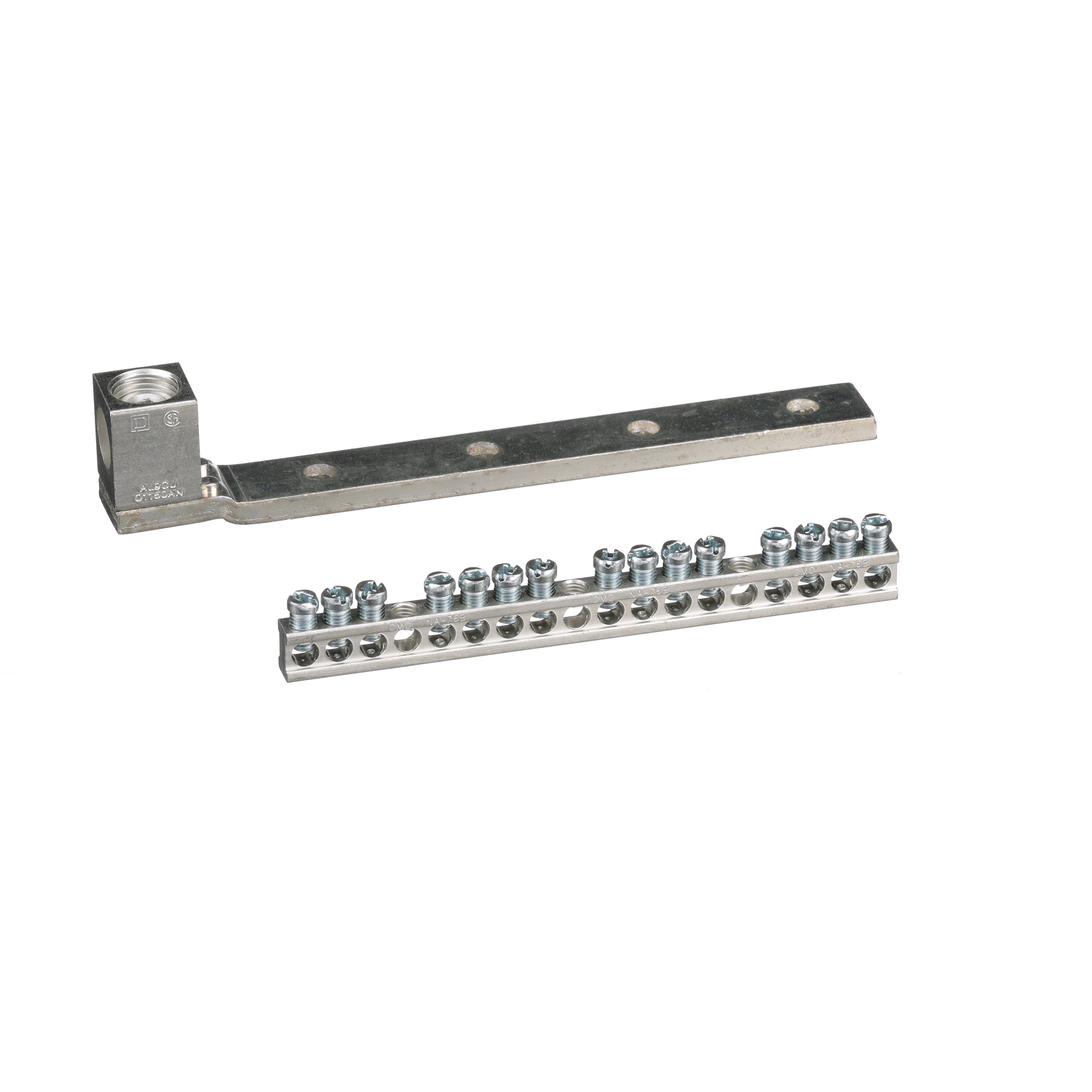

Load center accessory, QO/Homeline, ground bar kit, ...

Main breaker, QO, 225A, 2 pole, 120/240VAC, 22kA, bo...

Surge protection device, HEPD, 50kA, 120/240 V, 1 ph...

Surge protection device, Homeline, whole home, 50kA,...

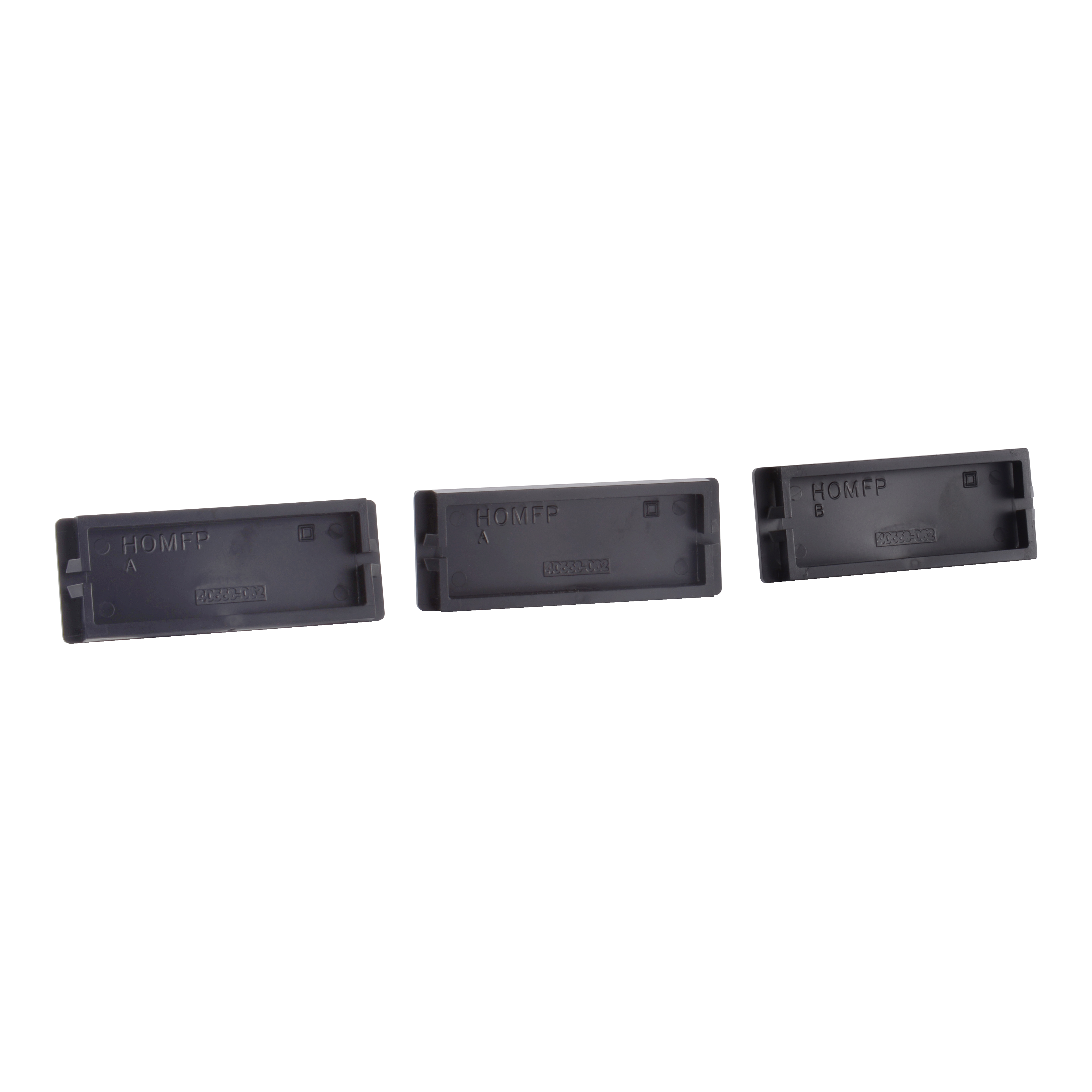

Load center accessory, Homeline, filler plate, set o...
