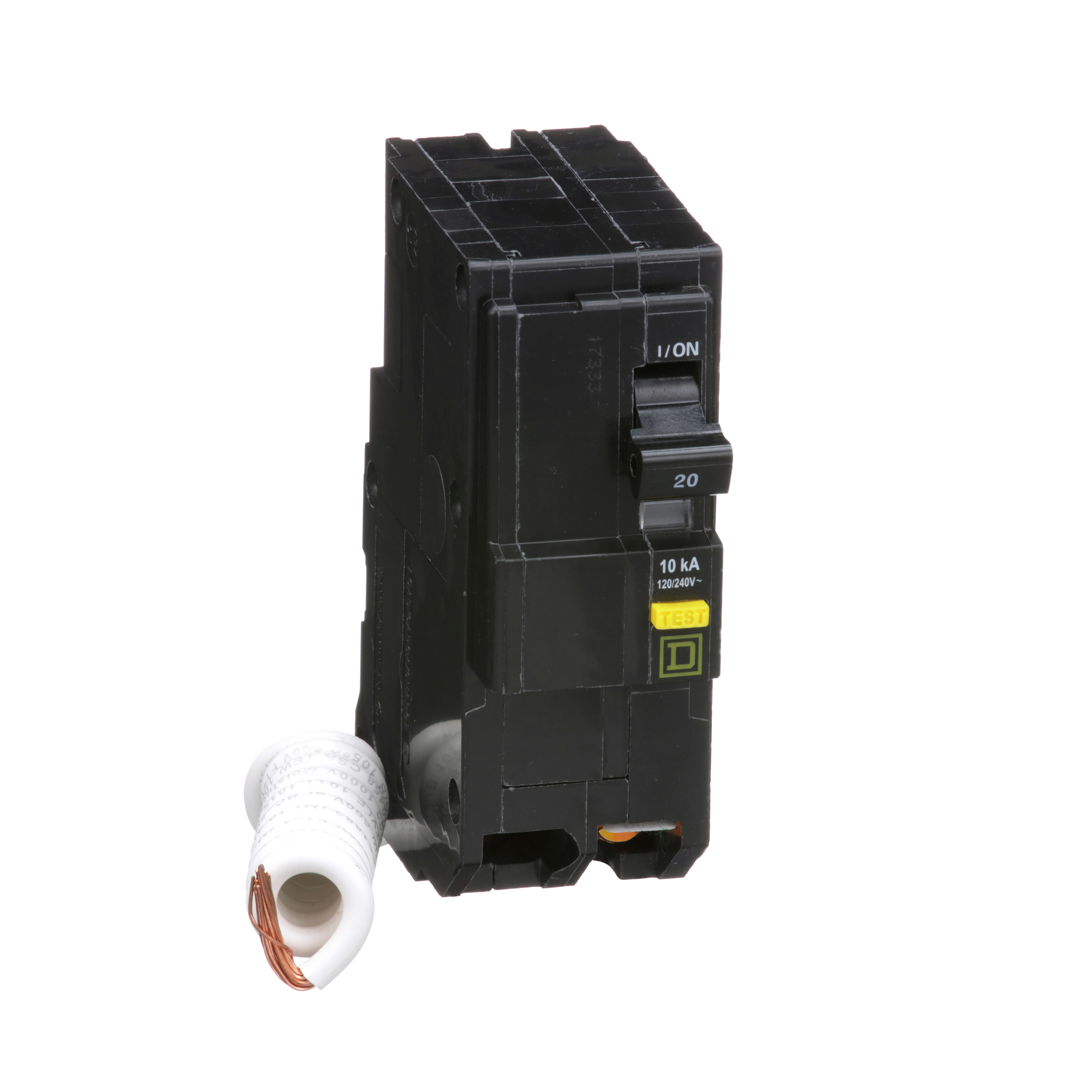

Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL

Name: Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Brand: United Electric
SKU: HOM220GFI
Price: 408.87 USD
Availability: InStock

MFR #: HOM220GFI

UPC: 785901303206

Product #: 51094

Part Number:

HOM220GFI 30320 MINIATURE CIRCUIT BREAKER 120/240V 20A SQUARE D

$408.87 / ea $413.00 / ea

Enter Quantity

Features

SQUARE D HOM220GFI MINIATURE CIRCUIT BREAKER GROUND FAULT PROTECTING (CLASS A) TYPE 20A 2-POLE 120/240VAC HOM HACR RATED PLUG-ON 2 SPACE(S) 10KA #12-4 AWG(AL) - #14-6 AWG(CU) FOR USE WITH: HOMELINE LOAD CENTERS

Specifications

Awg Gauge 1 x AWG 12...AWG 4 ( aluminium );1 x AWG 14...AWG 6 ( copper )
Brand Square D
Circuit Breaker Application HACR rated
Circuit Breaker Type Ground fault protecting class A 6 mA
Electrical Connection Screw clamp terminals
Line Rated Current - Metric 20
Manufacturer Schneider Electric
Mounting Mode Plug-in
Number Of Spaces Required 2
Poles Description 2
Product Certifications UL Listed
Product Or Component Type Miniature circuit-breaker
Range Of Product Homeline
Rated Operational Voltage 120/240 V AC
Short Description HOM220GFI 30320 MINIATURE CIRCUIT BREAKER 120/240V 20A SQUARE D
Short-circuit Current - Metric 10
Tightening Torque 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14);4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
