Load center, Homeline, 1 phase, 12 spaces, 12 circuits, 225A convertible main lugs, PoN, NEMA3R

Name: Load center, Homeline, 1 phase, 12 spaces, 12 circuits, 225A convertible main lugs, PoN, NEMA3R
Brand: United Electric
SKU: HOM12L225PRB
Price: 452.27 USD
Availability: InStock

MFR #: HOM12L225PRB

UPC: 78590186110

Product #: 567599

Part Number:

HOM12L225PRB HOM OUTD 225A MLO 12CIR

$452.27 / ea $456.84 / ea

Enter Quantity

Features

SQD SCHNEIDER-ELECTRIC HOM12L225PRB

Specifications

Brand Square D
Bus Rated Current - Metric 225
Cable Size AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
Cover Type Surface cover
Depth - Metric 115
Device Composition Grounding bar (ordered separately)
Electrical Connection Lugs
Enclosure 5R;Baked enamel Gray;Welded galvannealed steel
Height - Metric 661
Line Rated Current - Metric 225
Load Center Type PoN Convertible Mains (lugs)
Manufacturer Schneider Electric
Nema Degree Of Protection NEMA 3R weatherproof enclosure
Number Of Circuits 12
Number of Spaces 12
Number Of Tandem Circuit Breakers 0
Phase 1
Rated Operational Voltage 120/240 V AC
Short Description HOM12L225PRB HOM OUTD 225A MLO 12CIR
Short-circuit Current - Metric 10
Special Features Tin plated aluminium: busbar
Type Load Center
Width - Metric 375
Wiring Configuration 3-Wire

Resources

Product Brochure

Spec Sheet

Technical Drawing

Load center, Homeline, 1 phase, 12 spaces, 12 circuits, 225A convertible main lugs, PoN, NEMA3R

Customer Part Number

Product group

Features

Specifications

Resources

You May Also Need

Accessory, bolt-on hub, 1.25in, rainproof

Accessory, bolt-on hub, 1.00in, rainproof

Accessory, bolt-on hub, 0.75in, rainproof

Accessory, bolt-on hub, 3.00in, rainproof

Load center accessory, QO/Homeline, screws kit, quan...

Main breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bo...

Accessory, bolt-on hub, 2.50in, rainproof

Surge protection device, HEPD, 50kA, 120/240 V, 1 ph...

Surge protection device, Homeline, whole home, 50kA,...

Accessory, bolt-on hub, 2.00in, rainproof

Load center accessory, Homeline, filler plate, set o...

Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC,...

Mini circuit breaker, Homeline, 30A, 2 pole, 120/240...

Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC,...

Mini circuit breaker, Homeline, 50A, 2 pole, 120/240...

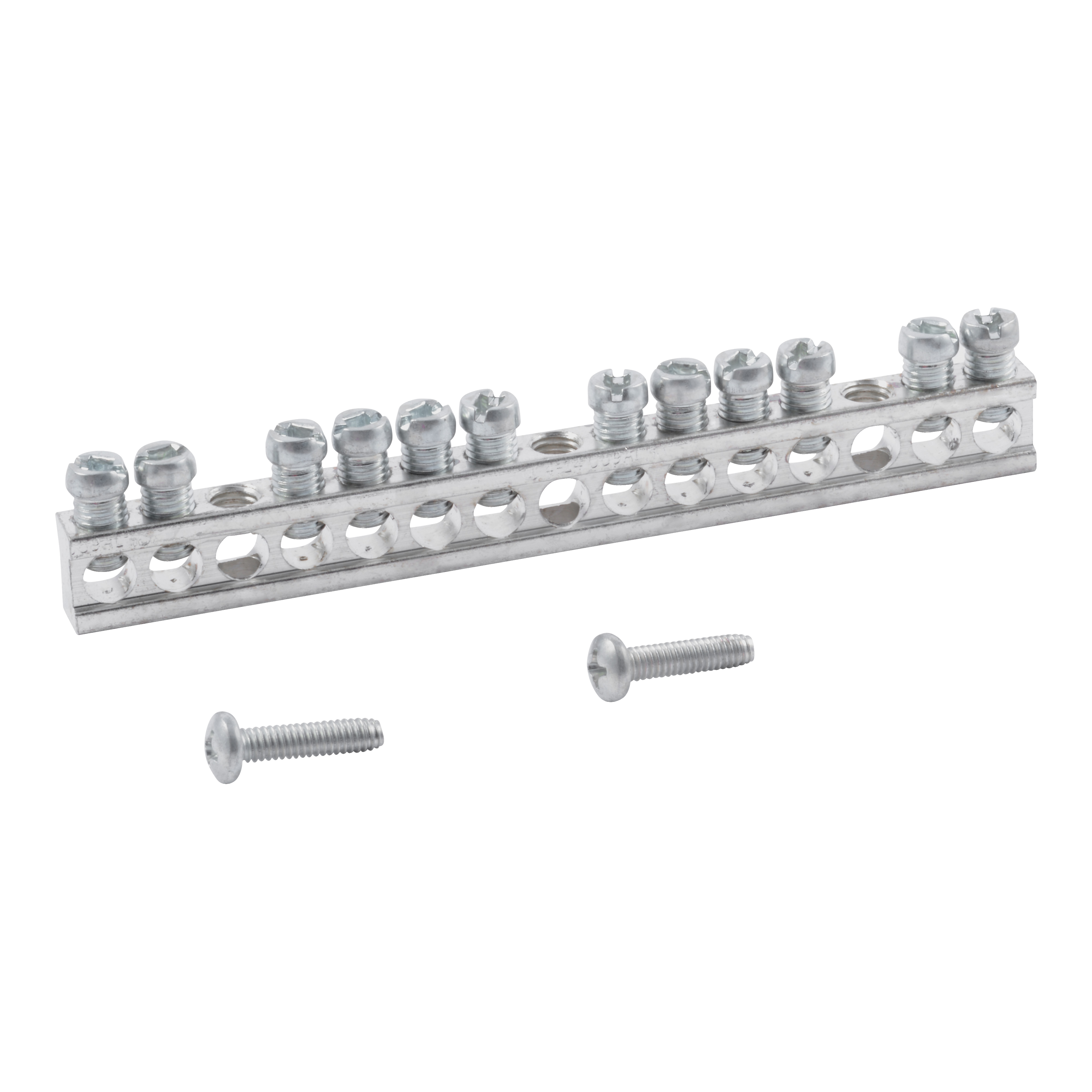

Load center accessory, QO/Homeline, ground bar kit, ...
