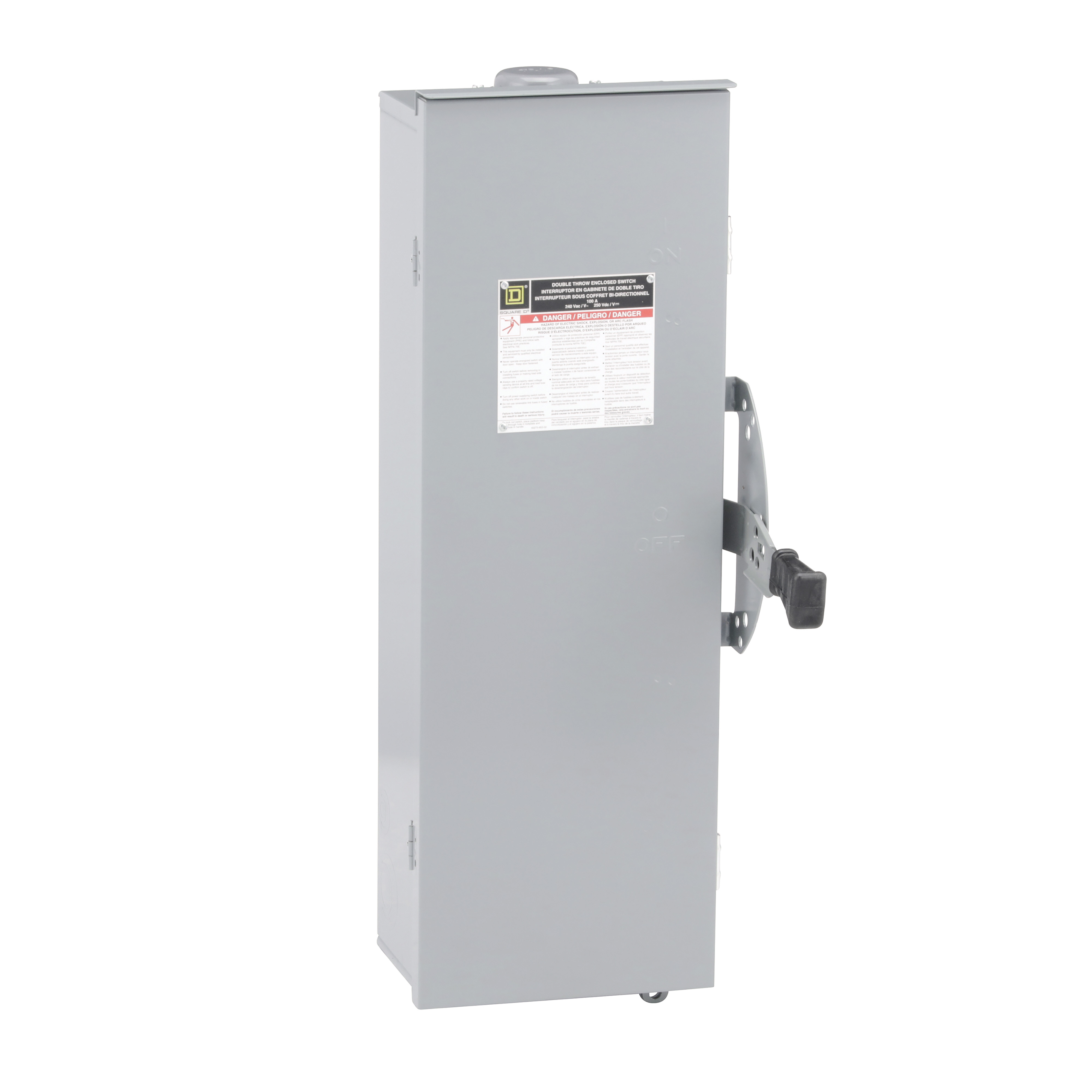

Safety switch, double throw, non fusible, 100A, 240VAC, 250VDC, 3 pole, 30HP, NEMA 3R, bolt on provision

Name: Safety switch, double throw, non fusible, 100A, 240VAC, 250VDC, 3 pole, 30HP, NEMA 3R, bolt on provision
Brand: United Electric
SKU: DTU323RB
Price: 1933.47 USD
Availability: InStock

MFR #: DTU323RB

UPC: 785901308737

Product #: 54343

Part Number:

DTU323RB 30873 SWITCH NOT FUSIBLE DT N3R 240V 100A 3P SQUARE D

$1,933.47 / ea $1,953.00 / ea

Enter Quantity

Features

SQUARE D DTU323RB SAFETY SWITCH DOUBLE THROW 100A NON-FUSIBLE 240 VAC/250 VDC NEMA 3R 3-POLE RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) UL LISTED GALVANNEALED STEEL SURFACE 200KA(MAX)

Specifications

Brand Square D
Device Composition None
Fuse Type H or K;R, J or T
Line Rated Current - Metric 100
Manufacturer Schneider Electric
Mounting Surface
Nema Degree Of Protection NEMA 3
Net Weight - Metric 18.37
Number of Poles 3.0
Rated Operational Voltage 240 V AC;250 V DC
Series Name Heavy duty
Short Description DTU323RB 30873 SWITCH NOT FUSIBLE DT N3R 240V 100A 3P SQUARE D
Short-circuit Current 10 kA H or K;200 kA R, J or T
Tightening Torque 35-35 lbf.in 2.06-5.26 mm² (AWG 14...AWG 1/0);40-40 lbf.in 8.37-8.37 mm² (AWG 8);45-45 lbf.in 13.30-53.48 mm² (AWG 8);50-50 lbf.in 26.67-53.48 mm² (AWG 6...AWG 4)
Type Non-fusible disconnect switch;Double Throw Safety Switch
Wire Type AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
