Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A Cu, 135A Al, 600V

Name: Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A Cu, 135A Al, 600V
Brand: United Electric
SKU: 9080LBA362104
Price: 87.81 USD
Availability: InStock

MFR #: 9080LBA362104

UPC: 785901097457

Product #: 46427

Part Number:

9080LBA362104 09745 POWER DISTRIBUTION BLOCK 600V 175A SQUARE D

$87.81 / ea

Enter Quantity

Features

SQUARE D AND TELEMECANIQUE 9080LBA362104 POWER DISTRIBUTION BLOCK STANDARD 175A 135A 3-POLE TERMINALS PER POLE: 4

Specifications

Ambient Air Temperature For Operation -40.0-302.0
Brand Square D
Connection Tin plated aluminium lugs;Line lug 40 lbf.in AWG 8 copper or aluminium;line lug 35 lbf.in AWG 12...AWG 10 copper or aluminium;line lug 35 lbf.in AWG 14 copper;line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;load lug 120 lbf.in AWG 14...AWG 4 copper
Line Rated Current 175-175 A copper;135-135 A aluminium
Manufacturer Schneider Electric
Material Phenolic: block
Mounting SurfaceMount
Net Weight - Metric 0.22
Number Of Cables Line 4 , AWG 14...AWG 2/0, copper or aluminium;load 2 , AWG 14...AWG 4, copper or aluminium
Number of Poles 3.0
Number Of Terminals 1 line;4 load
Rated Operational Voltage 600 V AC/DC
Rated Service Breaking Capacity 100 kA UL 508 A
Short Description 9080LBA362104 09745 POWER DISTRIBUTION BLOCK 600V 175A SQUARE D
Short-circuit Current - Metric 65
Type Power Distribution Block;9080LB23
Wire Stripping Length Line: 0.5 in;load: 0.44 in for top connection;load: 0.75 in for bottom connection

Resources

Product Brochure

Spec Sheet

Technical Drawing

You May Also Need

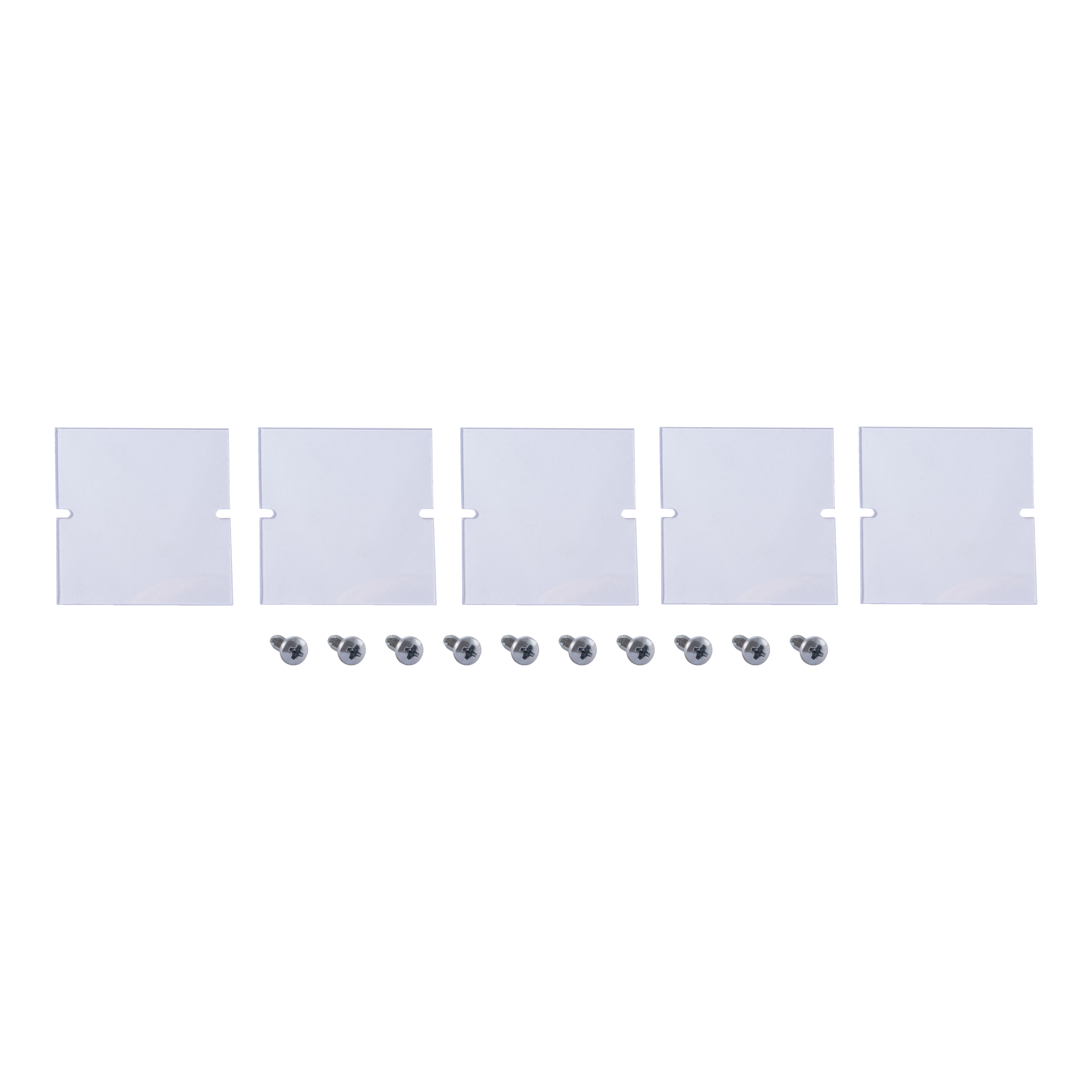

Power distribution block, Linergy, terminal cover fo...
