Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 120 VAC coil, pilot light

Name: Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 120 VAC coil, pilot light
Brand: United Electric
SKU: 8501KPR12P14V20
Price: 58.7 USD
Availability: InStock

MFR #: 8501KPR12P14V20

UPC: 785901153726

Product #: 596986

Part Number:

8501KPR12P14V20 RELAY 2CO CYL PIN 10A@240V 120VAC COIL LED SQUARE D

$58.70 / ea

Enter Quantity

Specifications
Resources

Specifications

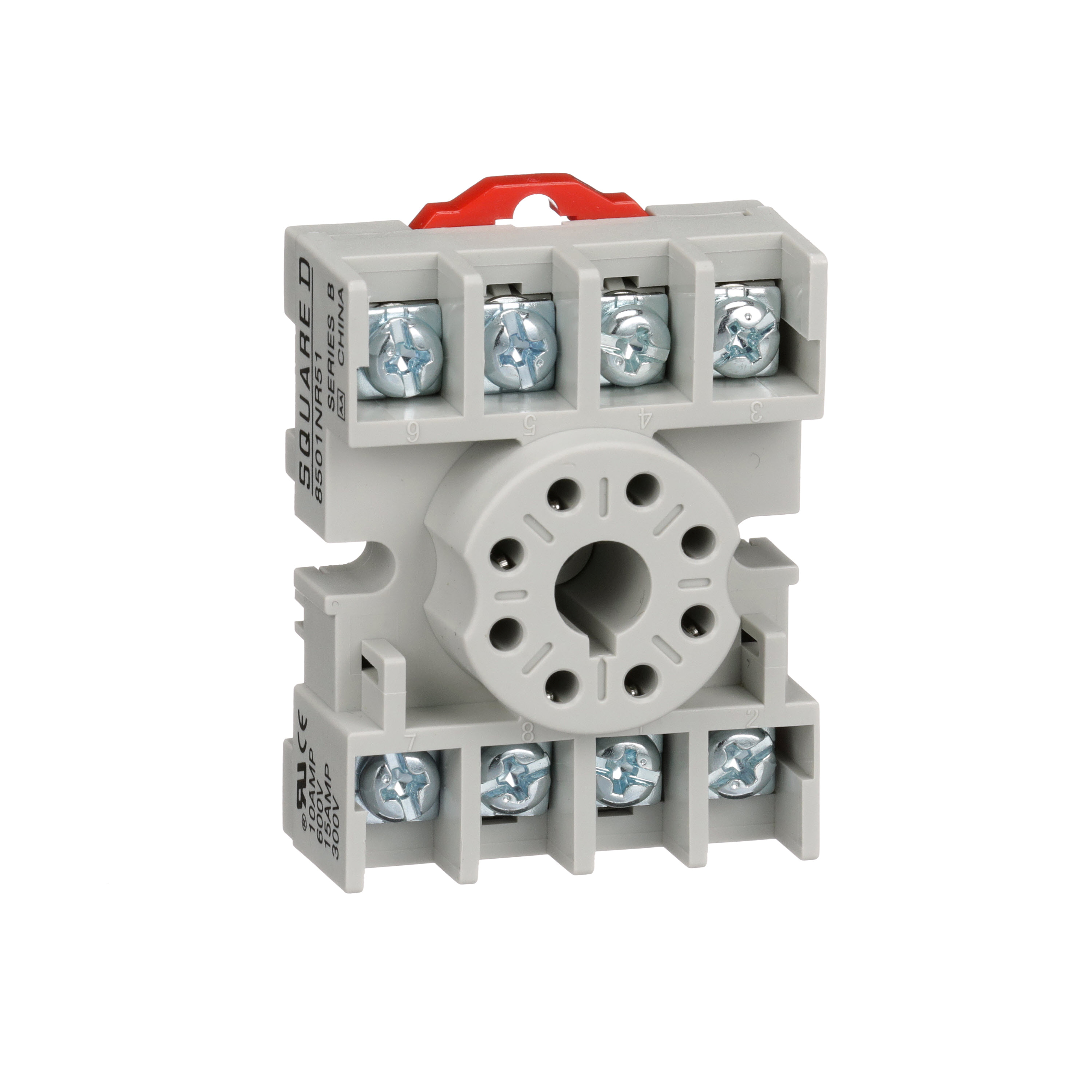

Application 8501NR51;8501NR52
Brand Square D
Control Circuit Voltage 120 V AC
Control Type Without test button
Local Signalling Indicator light relay energised LED
Manufacturer Schneider Electric
Maximum Switching Voltage 30 V DC;300 V AC
Mounting Socket
Operating Time 20 ms - drop-out;20 ms - pick-up
Rated Breaking Capacity 1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508;3 A 120 V AC inductive control circuit UL 508
Rated Power In Hp 0.33 hp 120 V AC;1 hp 277 V AC
Shape Of Pin Tubular
Short Description 8501KPR12P14V20 RELAY 2CO CYL PIN 10A@240V 120VAC COIL LED SQUARE D
Type Relay
