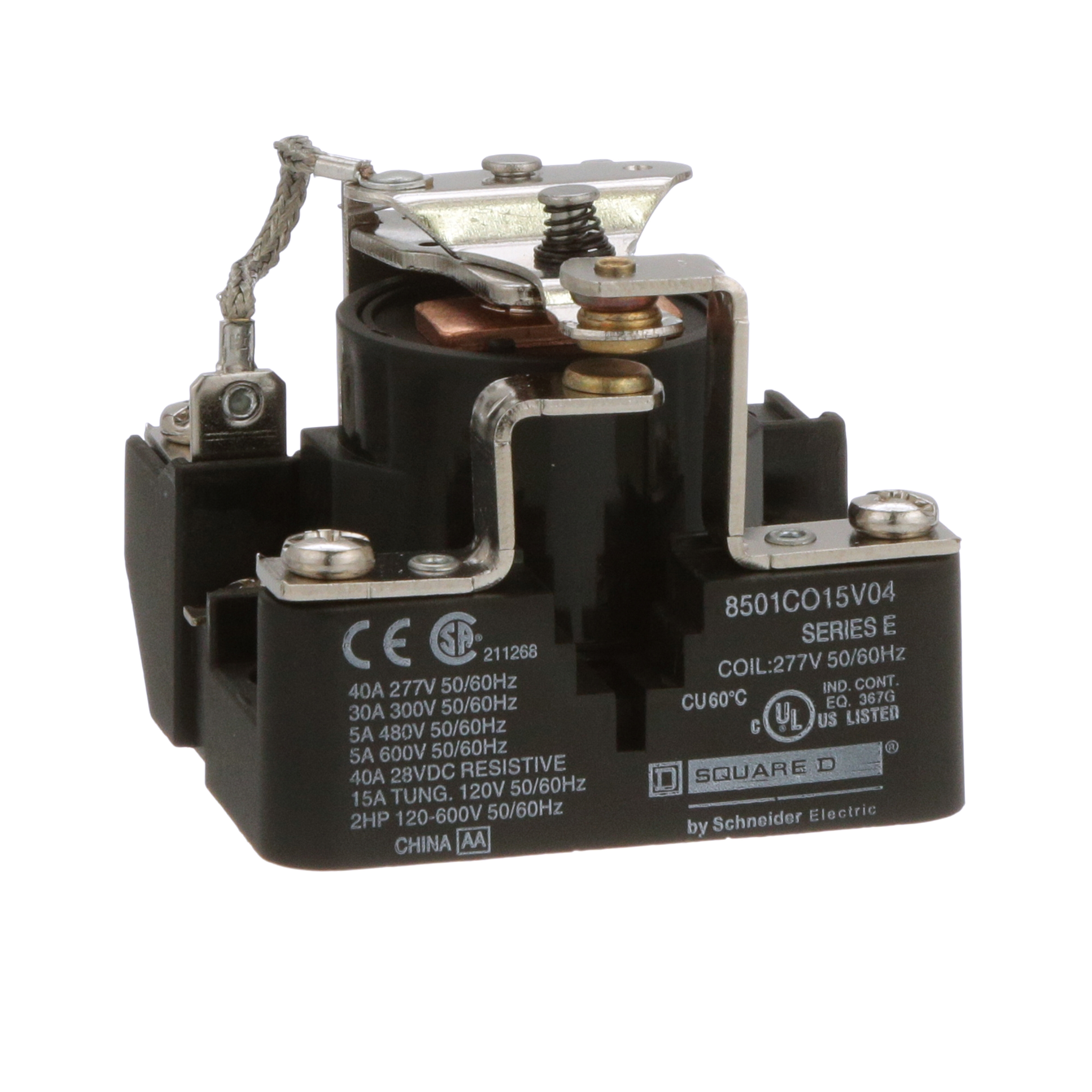

Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 277 VAC coil

Name: Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 277 VAC coil
Brand: United Electric
SKU: 8501CO15V04
Price: 132.33 USD
Availability: InStock

MFR #: 8501CO15V04

UPC: 785901052265

Product #: 107622

Part Number:

8501CO15V04 05226 RELAY 600VAC 5AMP TYPE C +OPTIONS SQUARE D

$132.33 / ea

Enter Quantity

Features

SQUARE D 8501CO15V04 POWER RELAY (TYPE C) 30A SPDT 1 NO/1 NC AC RATED 277 VAC@60HZ 1-PHASE

Specifications

Awg Gauge AWG 10 copper
Brand Square D
Connections - Terminals Screw clamp terminal
Device Application Suited for controlling small single phase motors and other light loads
Line Rated Current - Metric 30
Manufacturer Schneider Electric
Maximum Switching Voltage 600 V AC
Rated Power In Hp 2
Short Description 8501CO15V04 05226 RELAY 600VAC 5AMP TYPE C +OPTIONS SQUARE D
Tightening Torque 11.0-15.0

Resources

Product Brochure

Spec Sheet

Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 277 VAC coil
