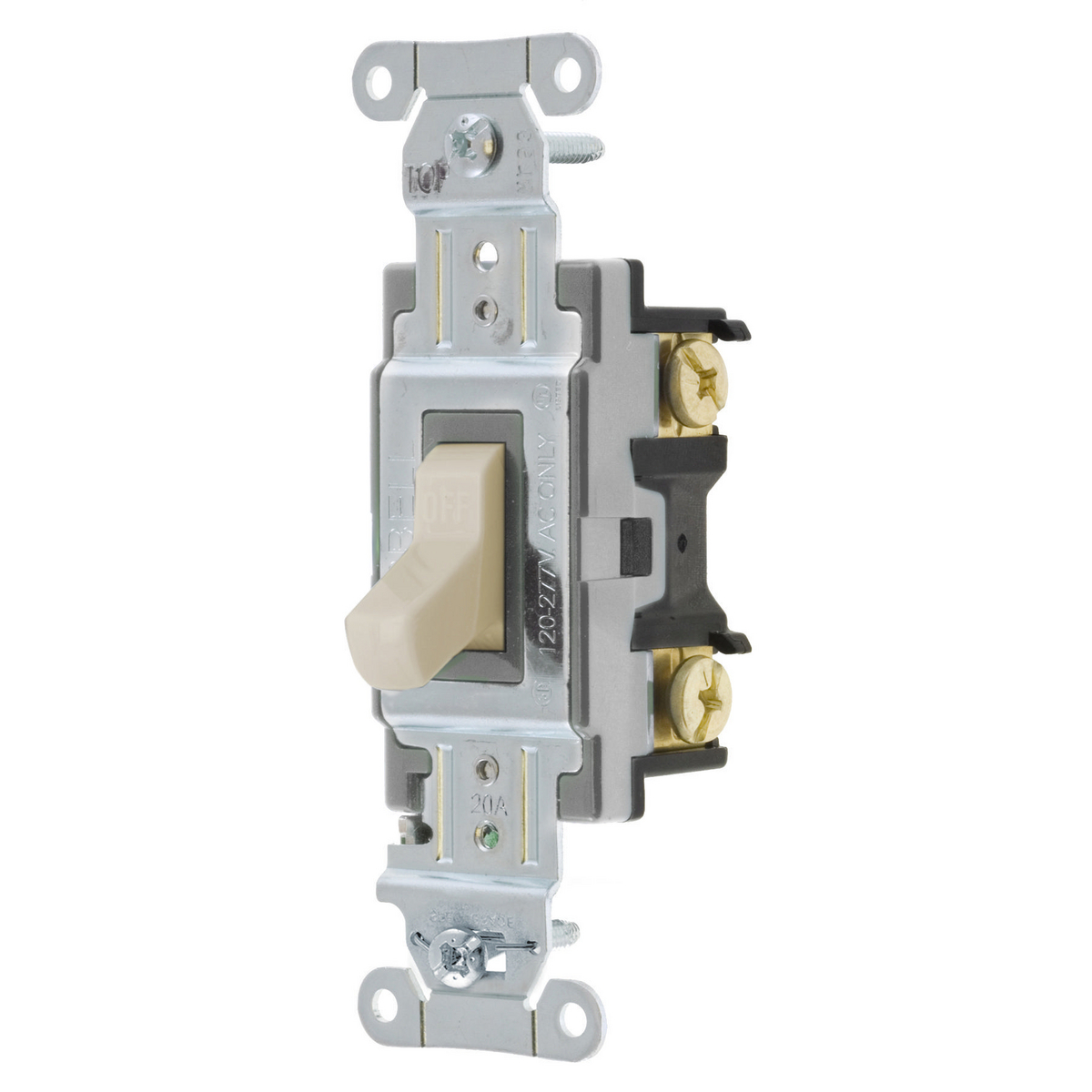

Switches and Lighting Controls, Specification Grade Commercial Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Side Wired Only, Ivory Toggle.

Name: Switches and Lighting Controls, Specification Grade Commercial Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Side Wired Only, Ivory Toggle.
Brand: United Electric
SKU: CS120I
Price: 5.34 USD
Availability: InStock

MFR #: CS120I

UPC: 783585901152

Product #: 6070

Part Number:

HUBCS120I SWITCH SPEC SP 20A 120/277V IV CS120I HUBBELL

$5.34 / ea

Enter Quantity

Features

HUBBELL CS120I SWITCHES AND LIGHTING CONTROLS SPECIFICATION GRADE COMMERCIAL SERIES TOGGLE SWITCHES GENERAL PURPOSE AC SINGLE POLE 20A 120/277V AC SIDEWIRED ONLY IVORY

Specifications

Amperage Rating 20
Application Commercial Spec Grade
Brand WIRING DEVICE-KELLEMS
Connection Side Wired Only
Contact Configuration Two Position
Contact Rating Per UL 20
Decorative Color Ivory
Enclosure None
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Insulation False
Manufacturer Hubbell Wiring Device-Kellems
Material Nylon
Mounting Screw Mount
Number of Poles Single Pole
Operating Cycles 50,000
Operating Temperature, Maximum 167
Operating Temperature, Minimum -40
Pallet Quantity 4050
Performance Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Short Description HUBCS120I SWITCH SPEC SP 20A 120/277V IV CS120I HUBBELL
Special Features Standard Product
Switch Type Toggle
Type Toggle
Voltage Rating 120/277
Wattage 5540;5540.0000
