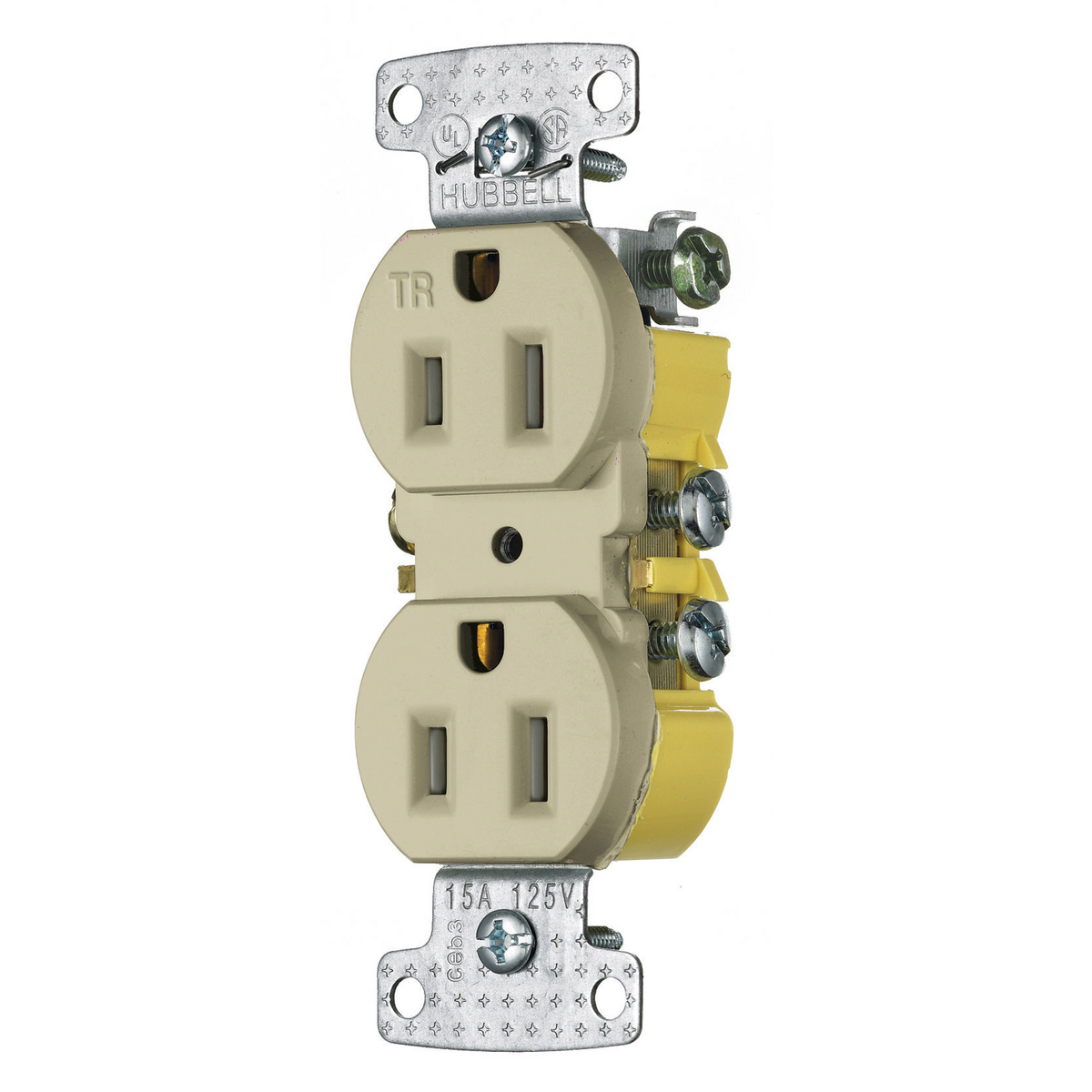

Straight Blade Duplex Receptacle, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R

Name: Straight Blade Duplex Receptacle, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R
Brand: United Electric
SKU: CR15ITR
Price: 8.08 USD
Availability: InStock

MFR #: CR15ITR

UPC: 783585144221

Product #: 192977

Part Number:

HUBCR15ITR T-RES COM GRD 15A 125V 5-15R IV SW CR15ITR HUBBELL

$8.08 / ea

Enter Quantity

Features

HUBBELL CR15ITR HUBBELL WIRING DEVICES STRAIGHT BLADE DEVICES RECEPTACLES DUPLEX COMMERCIAL GRADE 2-POLE 3-WIRE GROUNDING 15A 125V 5-15R IVORY SINGLE PACK

Specifications

Amperage Rating 15
Application Commercial Specification Grade
Brand WIRING DEVICE-KELLEMS
Connection Back and Side Wired
Current / Amperage Rating 15
Current Rating 15
Decorative Color Ivory
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
FEATURES - Bullets Smooth face;Tamper-resistant shutter complies with national electrical code requirements;Triple wipe contacts
Manufacturer Hubbell Wiring Device-Kellems
Material Nylon
Mounting Screw Mount
NEMA Rating 5-15R
Number of Poles 2-Pole
Number of Wires 3-Wire
Pallet Quantity 8000
Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Phase 1
Series Commercial Specification Grade
Short Description HUBCR15ITR T-RES COM GRD 15A 125V 5-15R IV SW CR15ITR HUBBELL
Special Features Tamper Resistant
Type Tamper-Resistant
Voltage Rating 125 V
Wattage 1,875
Wire Size #14 to #10
