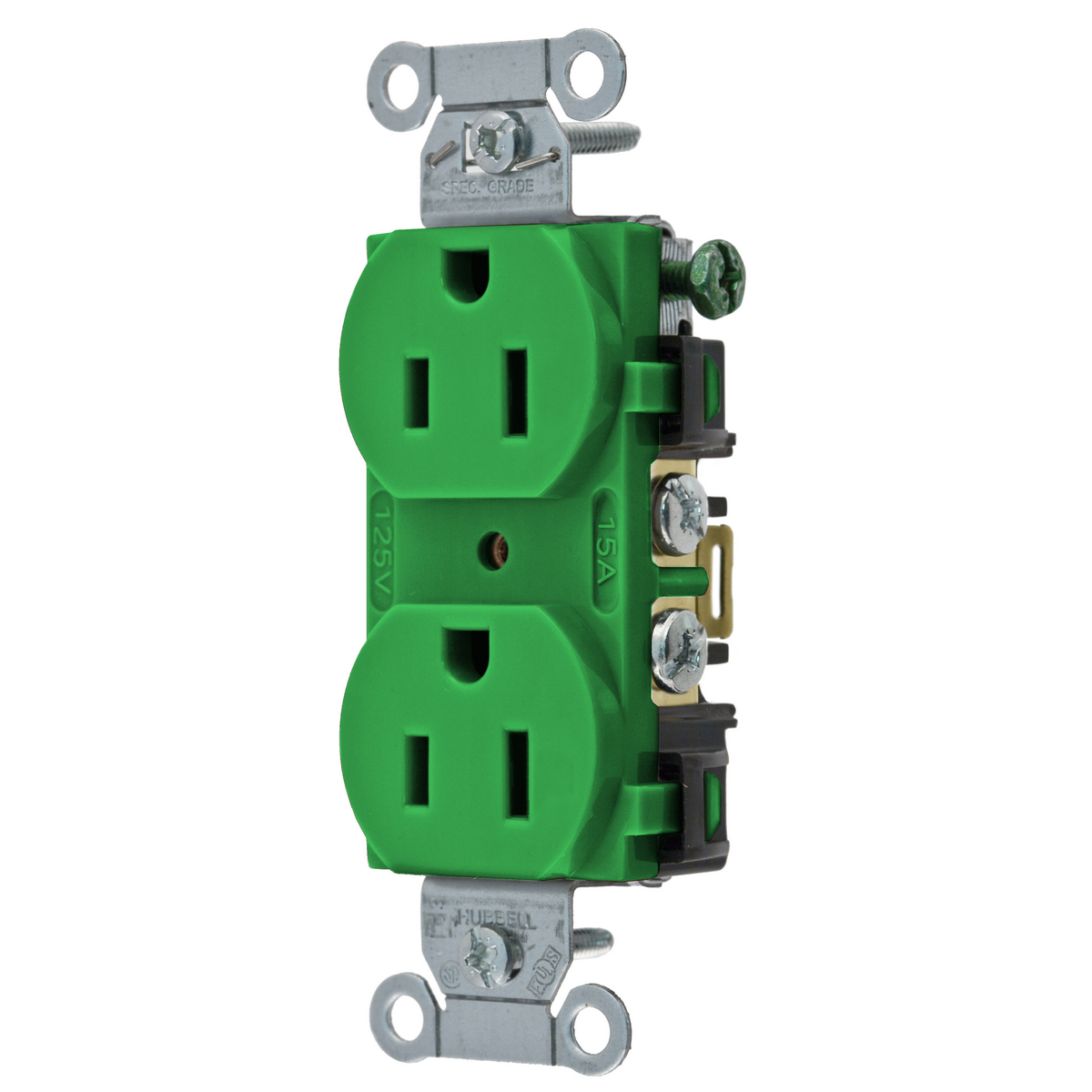

Straight Blade Duplex Receptacle, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R.

Name: Straight Blade Duplex Receptacle, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R.
Brand: United Electric
SKU: BR15I
Price: 4.45 USD
Availability: InStock

MFR #: BR15I

UPC: 783585834849

Product #: 742491

Part Number:

HUBBR15I RCPT DUP SB COM GRD 15A 125V B/S IV BR15I HUBBELL

$4.45 / ea $5.45 / ea

Enter Quantity

Note: this product is only sold in multiples of 10

Features

HUBBELL BR15I HUBBELL WIRING DEVICE KELLEMS STRAIGHT BLADE DEVICES RECEPTACLES DUPLEX COMMERCIAL GRADE 2-POLE 3-WIRE GROUNDING 15A 125V 5-15R IVORY SINGLE PACK

Specifications

Amperage Rating 15
Application Commercial Specification Grade
Brand WDK
Connection Back and Side Wired
Current / Amperage Rating 15
Decorative Color Ivory
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 0.5
Manufacturer Hubbell Canada
Material Nylon
Mounting Screw Mount
NEMA Rating 5-15R
Number of Poles 2-Pole
Number of Wires 3-Wire
Pallet Quantity 9000
Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Phase 1
Short Description HUBBR15I RCPT DUP SB COM GRD 15A 125V B/S IV BR15I HUBBELL
Special Features Self Grounding
Type Standard Duplex
Voltage Rating 125 V
Wattage 1,875
Wire Size #14 to #10
