Aluminum Compression Pin Adapter, 350 kcmil, 0.57" Plug Dia, 1.34" Plug Length, Al/Cu Rated.

Name: Aluminum Compression Pin Adapter, 350 kcmil, 0.57" Plug Dia, 1.34" Plug Length, Al/Cu Rated.
Brand: United Electric
SKU: AYPO350
Price: 111.14 USD
Availability: InStock

MFR #: AYPO350

UPC: 781810738443

Product #: 747903

Part Number:

BURAYPO350 ALUMINUM COMPRESSION PIN ADAPTER 350 KCMIL 0.57" PLUG DIA 1.34" PLUG LENGTH AL/CU RATED BURNDY

$111.14 / ea

Enter Quantity

Specifications
Resources

Specifications

Application Wire Termination
Brand BURNDY
Color Code Brown
Die Index 299
EU RoHS Indicator Yes
FEATURES - Bullets All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion;Provides the shortest connector length design possible permitting easy installation in equipment with limited working space;Solid electro-tin plated aluminum plug;Proper electrical connection made easily and eliminates the "how tight is tight" issue;Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment;Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment;Electro-tin plating resists corrosion;Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection;EPDM rubber covers supplied with each connector and rated for 600V eliminating taping;Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements;Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened;Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
Finish Tin-Plated
Insulation Y
Insulation Type Rubber
Manufacturer Burndy-US, a Hubbell affiliate
Material Aluminum
Minimum Pack Quantity 1
Plated Y
Plating Type Tin
Rating - KVA 35 kV
Short Description BURAYPO350 ALUMINUM COMPRESSION PIN ADAPTER 350 KCMIL 0.57" PLUG DIA 1.34" PLUG LENGTH AL/CU RATED BURNDY
Temperature Rating 194
Trade Name HYPLUG™
Type Aluminum Pin Adapters
Voltage - Maximum 35,000
Voltage Rating 35

Resources

Product Brochure

Spec Sheet

Technical Drawing

Alternative Products

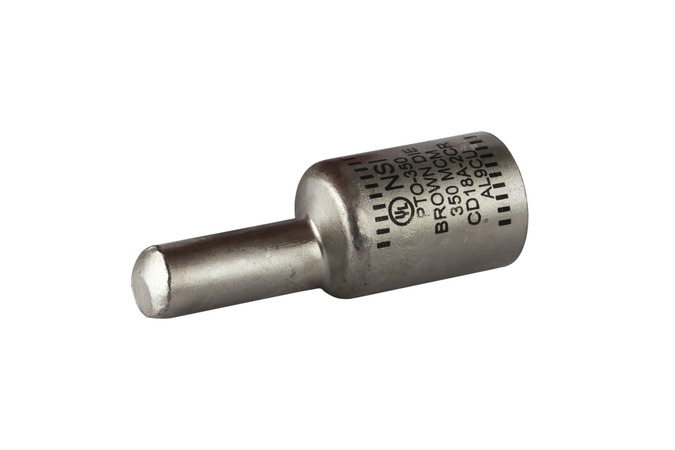

Offset Pin Terminal 350 MCM All-aluminum Pin Termina...
