Low Voltage Distribution Transformer - Single Phase, 190/208/220/240 X 380/416/440/480 - 120/240V, 5kVA

Name: Low Voltage Distribution Transformer - Single Phase, 190/208/220/240 X 380/416/440/480 - 120/240V, 5kVA
Brand: United Electric
SKU: TF279263S
Price: 2590.32 USD
Availability: InStock

MFR #: TF279263S

UPC: 047503400067

Product #: 835892

Part Number:

XFMTF279263S 40006 TFMR 1PH 5.0KVA 190-480-120/240

Shipping Restrictions Apply

$2,590.32 / ea $3,111.04 / ea

Enter Quantity

Specifications
Resources

Specifications

Brand ACME ELECTRIC
Catalog Number TF279263S
Construction Encapsulated
Cooling Air Cooled/Dry
Enclosure NEMA 3R Steel
FEATURES - Bullets Electrostatic shield for enhanced protection;Quiet operation with sound levels below NEMA standards
Frequency Rating, Maximum 60
Frequency Rating, Minimum 50
FV_Construction Encapsulated
kVA 5
Manufacturer Acme Electric, a Hubbell affiliate
Mounting Wall
Pallet Quantity 18
Primary Voltage 190/208/220/240 X 380/416/440/480
Product Category Dry Type Distribution Transformer
Secondary Voltage 120/240
Short Description XFMTF279263S 40006 TFMR 1PH 5.0KVA 190-480-120/240
Special Features Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; Impedance: 3.21 PCT; 10-year limited warranty
Temperature Rating 115 DEG C Rise
Type Distribution Transformer
Winding Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding

Resources

Product Brochure

Spec Sheet

Technical Drawing

Alternative Products

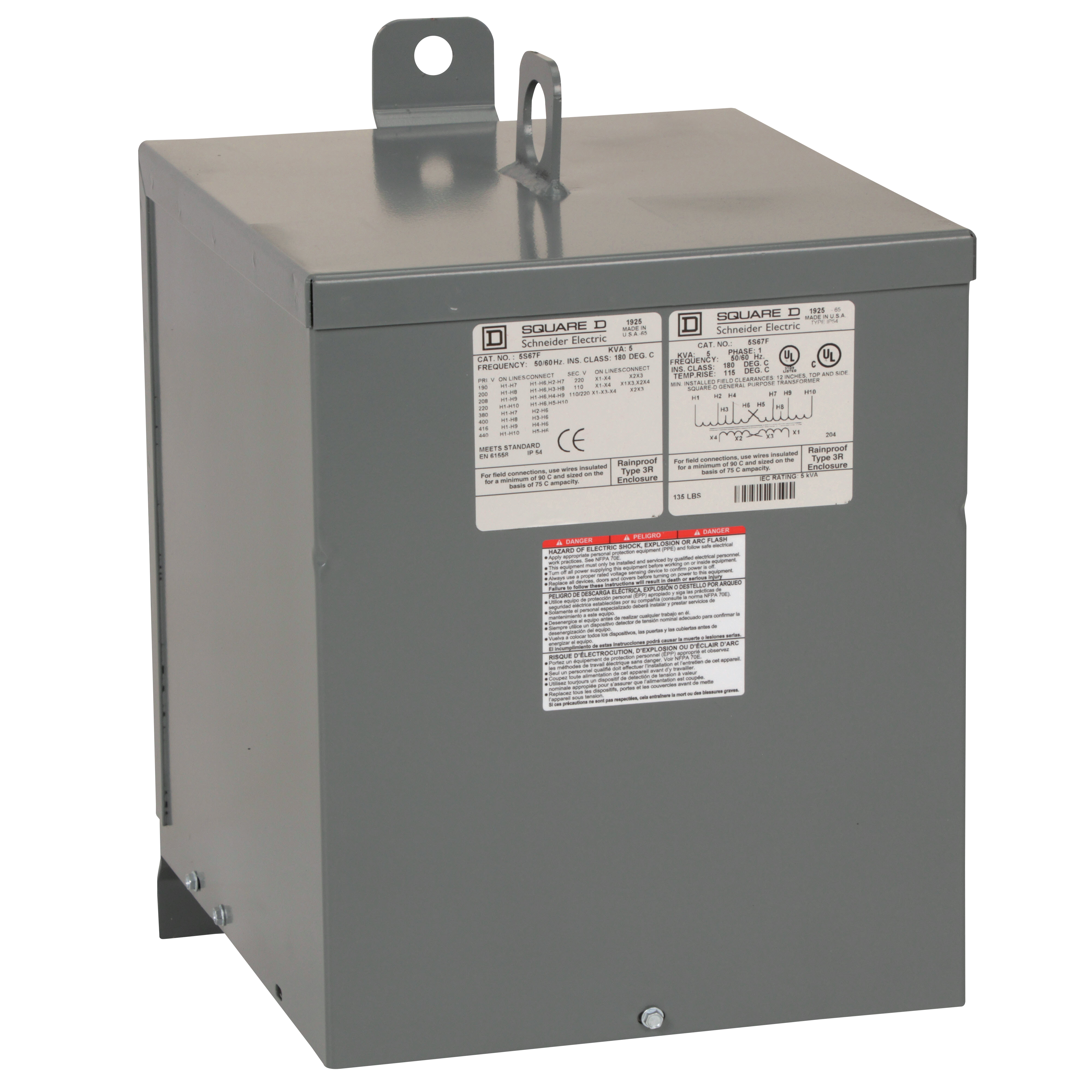

Transformer, dry type, encapsulated, 5kVA, 1 phase, ...

MFR #: 5S67F

$3,413.52 / ea $3,448.00 / ea
