Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 750VA

Name: Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 750VA
Brand: United Electric
SKU: T181066
Price: 597.42 USD
Availability: InStock

MFR #: T181066

UPC: 047503088128

Product #: 782914

Part Number:

XFMT181066 08812 TFMR 1PH .75KVA 240X480-24/48

$597.42 / ea $734.20 / ea

Enter Quantity

Specifications
Resources

Specifications

Application For Low Voltage Lighting Or Control Circuitry
Brand ACME ELECTRIC
Catalog Number T181066
Connection Wire Lead Screw Terminal
Construction Encapsulated
Enclosure NEMA 3R Steel
FEATURES - Bullets Easily configured for numerous applications;Lower cost solution;5-10 times increase in kVA
Frequency Rating 50/60
Insulation Class 180 DEG C Class H
kVA 16.5 KVA/34.38 AMP: 504 V Line And 480 V Load
Manufacturer Acme Electric, a Hubbell affiliate
Maximum Output Current 31.20 AMP At 24 V, 15.60 AMP At 48 V
Mounting Wall
Number Of Phases 1
Pallet Quantity 32
Primary Voltage 240 X 480 V
Secondary Voltage 24/48 V
Short Description XFMT181066 08812 TFMR 1PH .75KVA 240X480-24/48
Special Features Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty
Temperature Rating 115 DEG C Rise
Type Buck-Boost Transformer

Resources

Spec Sheet

Technical Drawing

Alternative Products

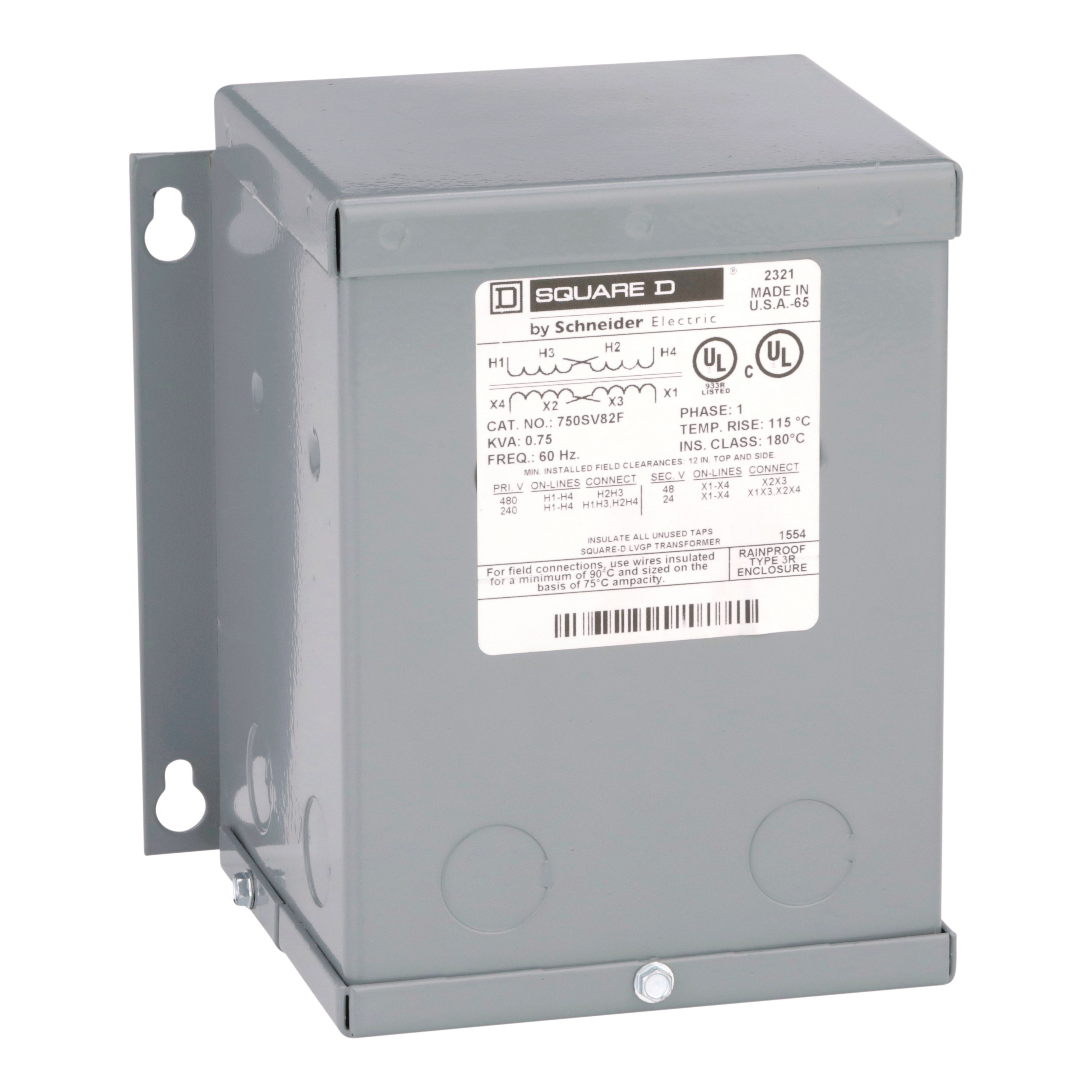

Transformer, buck boost, encapsulated, 0.75kVA, 1 ph...

MFR #: 750SV82F

$1,035.54 / ea $1,046.00 / ea
